| Quantity: | |
|---|---|
| 100 pieces per pack，Please consult us for actual packaging size and weight. | value | |

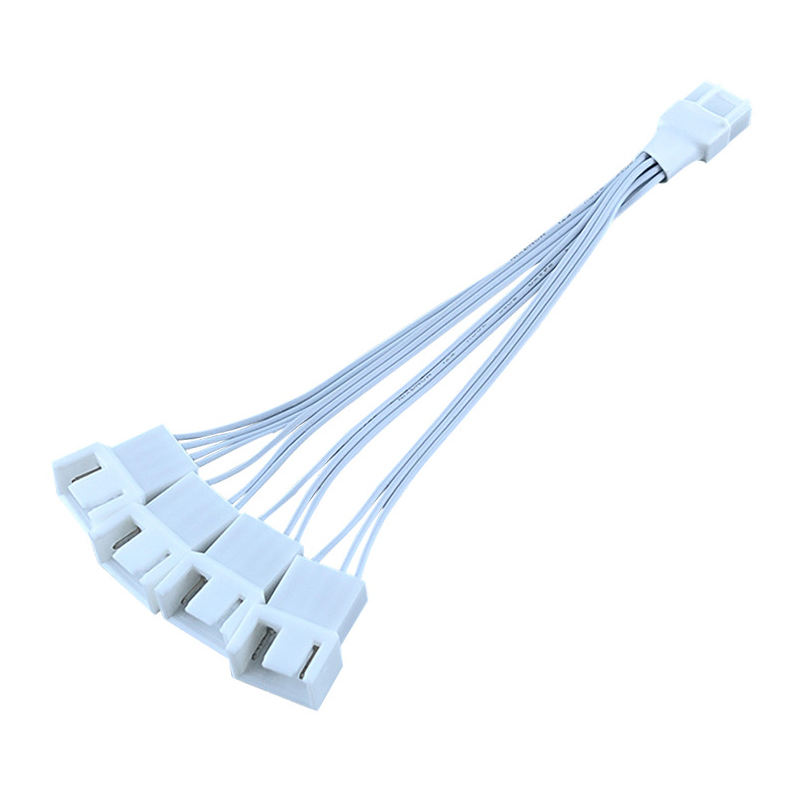

| Product Name | 4Pin Mainboard One-to-four fan extension cable | |

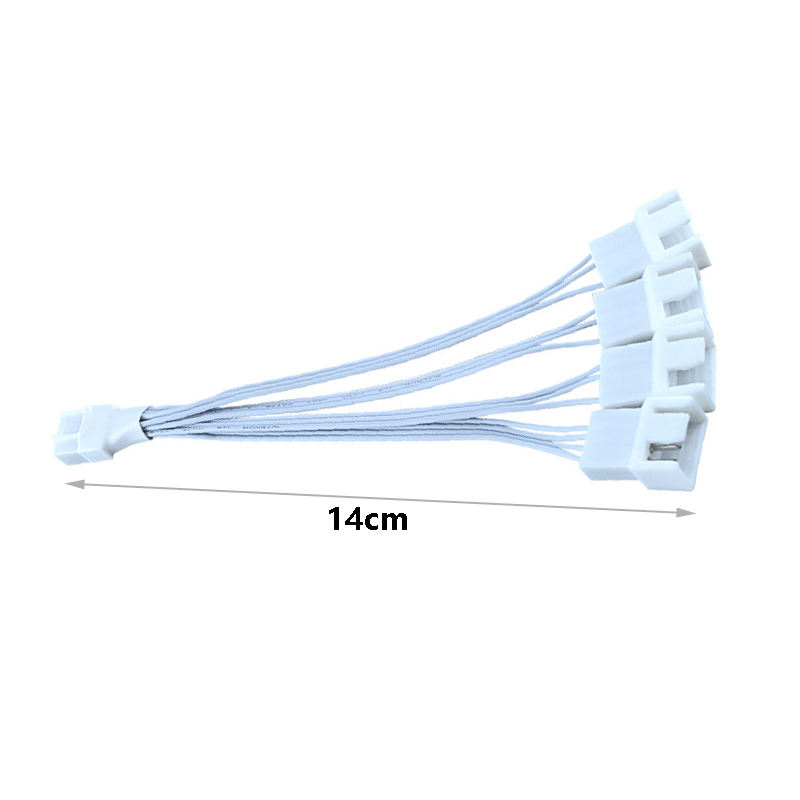

| Product Length | total length 14cm | |
| Product customization | If you need other lengths/colors/styles/methods, you can contact customer service for customization | |
| Wire Model | 1007-24AWG | |
| Insulation material | PVC insulation | |
| Conductor specifications | 11/0.12TS | |
| Conductor material | Tinned copper | |
| Outer diameter of wire | OD 1.3mm | |
| Rated temperature | 80℃ | |
| Wire color | White (color can be customized) | |
| Product weight | about 10g | |

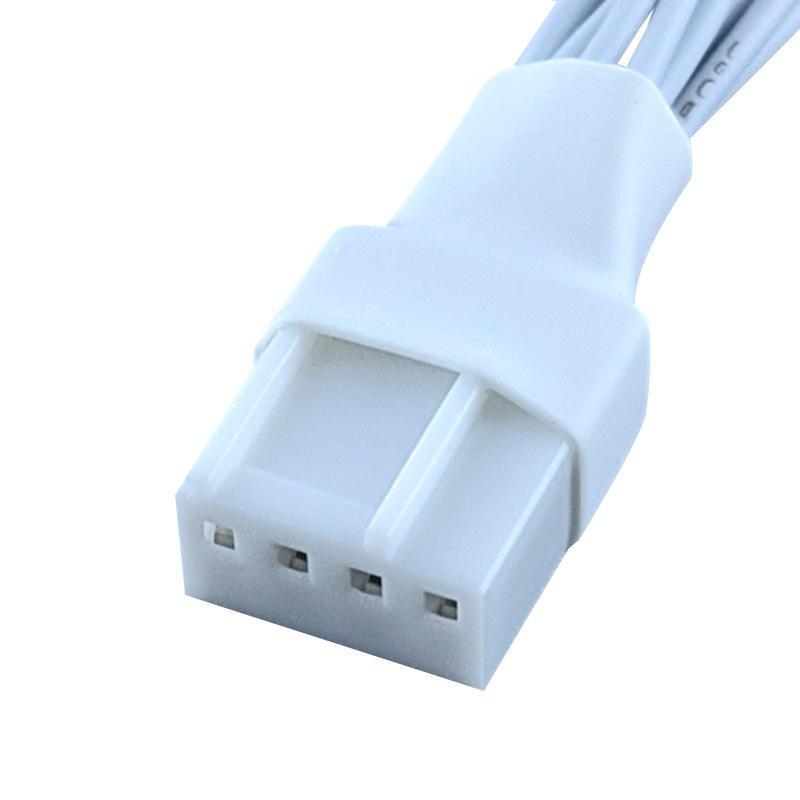

| Product connector | One end of the motherboard is a small 4Pin connector, and the other end is a fan 4Pin connector | |
| Purpose: When the CPU fan (4Pin) cable is not long enough and the motherboard interface is not enough, it supports 3Pin. Mainlyextend and expand the interface. | ||
| Important: In order to avoid signal conflicts for simultaneous speed measurement, as long as there is one 4 needles (supporting speed measurement and temperature control), the other interfaces are all 3 needles. | ||
| Reason: Because even the fans of the same model may have different speeds, if you use the motherboard to measure more than two fans with different speeds at the same time, the motherboard will go on strike. As a result, the temperature control and speed measurement functions will fail. Therefore, it is necessary to remove a speed measurement line of other interfaces, and only retain the speed signal of one fan. Other fans can also have the effect of temperature control and speed regulation. | ||
| 1：Packaging | 2：Length | 3：Connector | 4：Color | 5：Wire Diameter |
