1-to-4 DC5521 Power Splitter Wire, Stable 12V Output Convert to 4Pin for Multi 3/4Pin Desktop Case Fans

100 pieces per pack，Please consult us for actual packaging size and weight.

Product Name

DC5521 to 4-Pin 1-to-4 Fan Splitter Cable

Product Length

total length 35cm

Product customization

If you need other lengths/colors/styles/methods, you can contact customer service for customization

Wire Model

2464 (Main: 22AWG / Branches: 24AWG)

Insulation material

PVC insulation

Conductor specifications

Main cable: 2×17 strands 0.15mm oxygen-free copper
Branch cables: 2×11 strands 0.15mm oxygen-free copper

Conductor material

Oxygen-free Copper

Outer diameter of wire

3.5mm (both main and branches)

Rated temperature

80℃

Wire color

black (color can be customized)

Weight

30g

Product connector

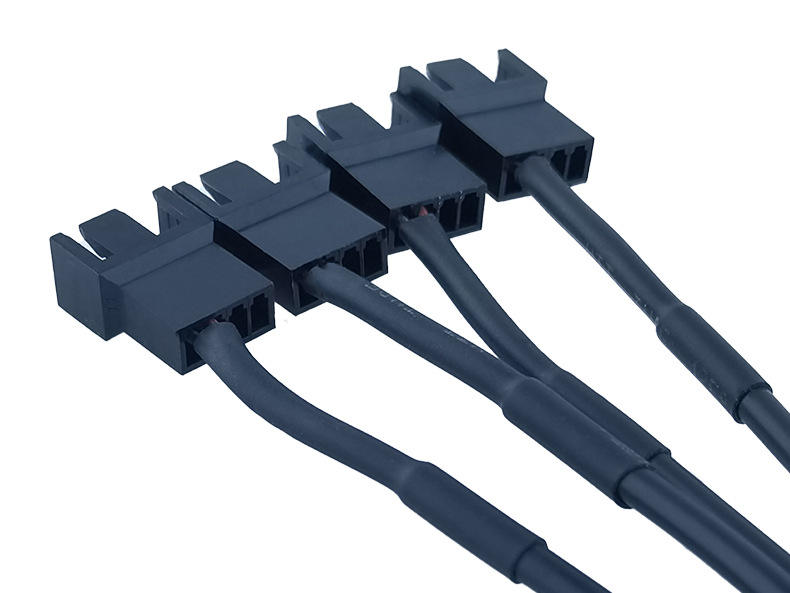

One end DC5521 female interface, the other four ends fan 4Pin interface (3Pin fan interface can also be used)

Product function

The chassis cooling fan can be changed to DC interface for power supply

If users who choose router heat sinks already have a 12V or 9V/5V power supply, they can cooperate with this dedicated adapter to power the heat sinks to solve the problem of network equipment heat dissipation.

If you need to use an external power supply for the chassis fan, you can choose this line.

Introduction: When using an external power adapter, the lower the voltage selected, the slower the speed. Fans that exceed the rated voltage will burn out. The common fan rated voltage is 12V. (Applicable to: the current of each fan does not exceed 2.3A)The power of the power supply represents the maximum power value that can be provided continuously. The total power of the fan generally does not exceed the maximum power of the power supply.This wire is a 4Pin interface, and you can actually make 4 wires. Because only 2 DC power supply is required, only two of them are used.
