| Quantity: | |
|---|---|
| 50 pieces per pack，Please consult us for actual packaging size and weight. | value | |

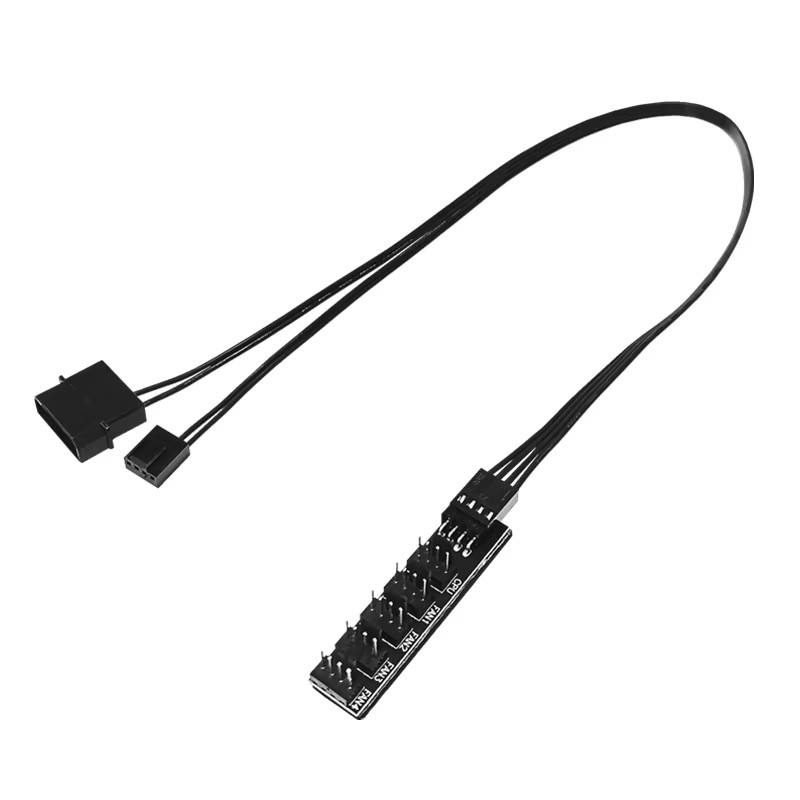

| Product Name | Chassis motherboard 4PIN fan one point five HUB hub | |
| Product Length | full length 48CM(Board:length 6cm width 1.35cm) | |
| connecting line | About 43cm | |
| Product customization | If you need other lengths/colors/styles/methods, you can contact customer service for customization | |
| Wire Model | 1007-22AWG | |
| Insulation material | PVC insulation | |
| Conductor specifications | 17/0.14TS | |
| Conductor material | Tinned copper | |
| Outer diameter of wire | OD 1.6mm | |
| Rated temperature | 80℃ | |
| Wire color | black (color can be customized) | |
| Product weight | about 18g | |

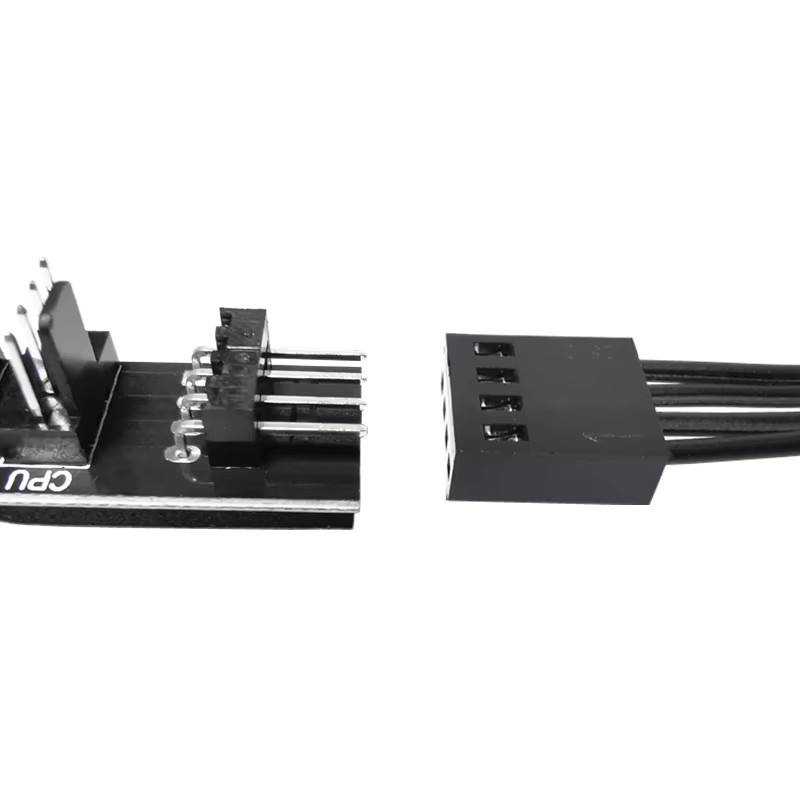

| Product connector | One end is 4Pin socket, the other end is the 4Pin interface signal line of the computer motherboard，and the large 4Pin D port is the power supply line. | |
| Product function | Five fans use the large 4Pin interface to supply power at the same time, which can reduce the load of the motherboard, increase the service life of the motherboard, and also realize the PWM speed regulation function. | |
| Product features | Support multi-channel PWM fans, compatible with 3PIN, 4PIN fans, support chassis wiring, with adhesive, you can fix the hub on the chassis. | |
| Scope of application | Suitable for 12V 3PIN/4PIN fans. | |
| Packing method | Independent packaging | |
| Purpose: 1: Expand the 3-pin/4-pin interface of the 5-bit fan to solve the lack of the motherboard interface and centrally handle the fan wire. 2: The CPU interface is connected to the motherboard cpu fan interface, the first cpu fan dedicated interface. The FAN1/FAN2/FAN3/FAN4 ports are pwm conventional fan ports. 3: There are two interfaces on this line, one is a large 4Pin power supply interface, which is plugged into the D-shaped port of the power supply for power supply, and the other is a 4Pin speed measurement and temperature control (PWM) function, which is plugged into the four pins of the computer motherboard, so that several The fan also realizes the synchronous temperature control function with the motherboard. | ||
| This product is a hub, and the function is to expand a single motherboard four-pin port into multiple ports. If your fan is a 3-pin fan, you can also plug it in, but it cannot achieve PWM control speed! Please be careful! | ||
| 1：Packaging | 2：Length | 3：Connector | 4：Color | 5：Wire Diameter |
