| PLEASE NOTE: This is a 5V 3Pin ARGB lighting hub/splitter only，Not a controller！！！ It must be connected to your motherboard's 5V ARGB header or lighting controller header to work and does not have independent control. | ||

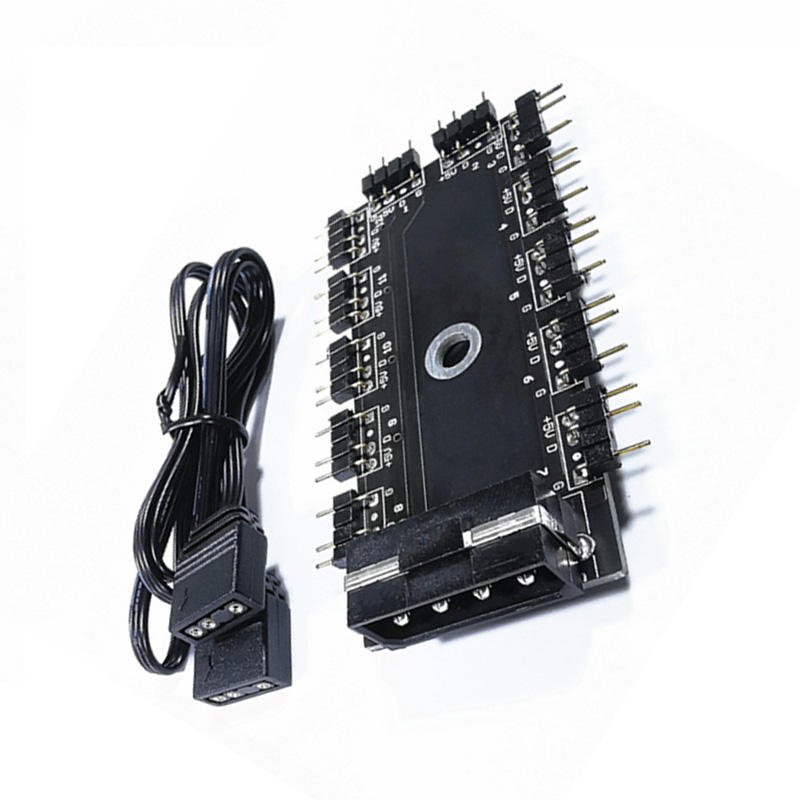

| Product Name | 1-to-11 ARGB Hub Expander | |
| Model | D3-ARGB-12/S3-ARGB-12 | |
| Rated Voltage | 5V DC | |
| Max Current | 4.5A | |
| Power interface | 4Pin Molex(IDE)/SATA | |
| Number of interfaces | 11(output)+1(input) | |
| Package | Bagged | |
| Product features: 1. The motherboard ARGB (3Pin) lighting control interface can be expanded to 11, and multiple RGB lighting devices can be centrally controlled. 2. Adhesive fixing method, which can be bonded to the inside of the chassis. Installation introduction: 1. Plug the IDE interface of the computer power supply into the power supply interface of the extender. 2. Connect one end of the 3Pin ARGB connection cable to the 5V 3Pin ARGB interface (or RGB LED fantasy controller) of the motherboard, and connect the other end to any 3Pin ARGB interface on the expander as the input port, and the remaining 11 3Pin ARGB interfaces as the output port, and connect the RGB lighting equipment. 3. Fix the expander to the inner wall of the chassis by glued. Warm reminder: If the batches are different or the line is upgraded, the appearance of the product may change. If the product pictures are not updated in time, the actual item will be received. We guarantee that the same function will be better quality. | ||
| 1：Packaging | 2：Length | 3：Connector | 4：Color | 5：Wire Diameter |
