| Quantity: | |
|---|---|
| 100 pieces per pack，Please consult us for actual packaging size and weight. | value | |

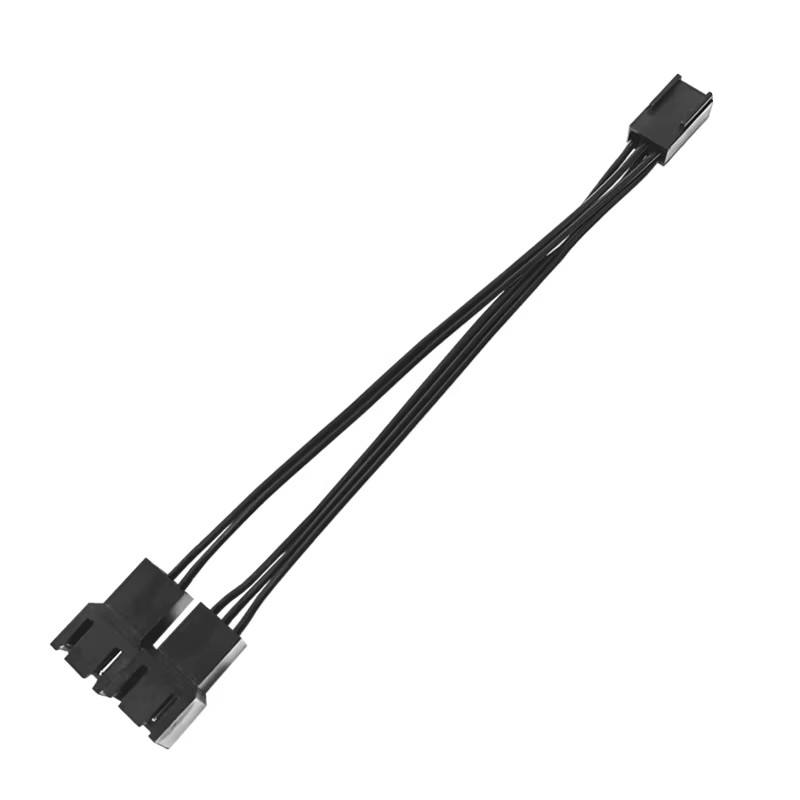

| Product Name | 3Pin Mainboard one-in-two fan extension cable | |
| Product Length | total length 14cm | |
| Product customization | If you need other lengths/colors/styles/methods, you can contact customer service for customization | |
| Wire Model | 1007-24AWG | |
| Insulation material | PVC insulation | |
| Conductor specifications | 7/0.12TS | |
| Conductor material | Tinned copper | |
| Outer diameter of wire | OD 1.3mm | |
| Rated temperature | 70℃ | |
| Wire color | Black (color can be customized) | |
| Product weight | about 4g | |

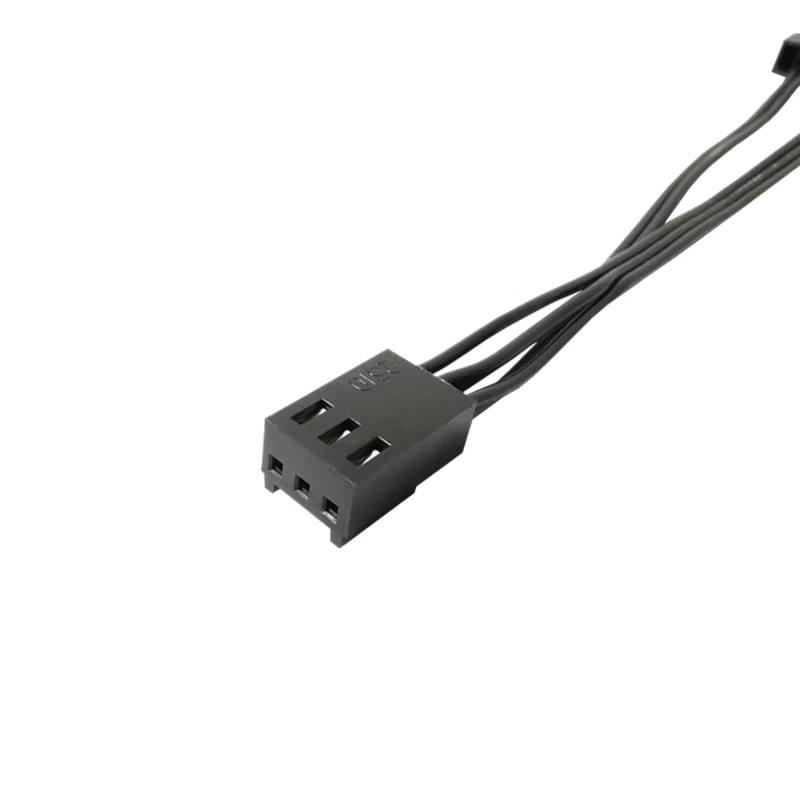

| Product connector | One end of the motherboard is a small 3pin connector, and the other end is a small 3Pin connector for the fan | |
| Purpose: The CPU fan (3Pin) cable is not long enough, and the motherboard interface is not enough. | ||
| Important: In order to avoid signal conflicts for simultaneous speed measurement, as long as there are 3 needles (supporting speed measurement and temperature control), the other interfaces are all 3 needles. | ||
| Reason: Because even fans of the same model may have different speeds, if you use the motherboard to measure two or more fans with different speeds at the same time, the motherboard will go on strike, and the result will be the failure of the speed measurement function. Therefore, it is necessary to remove a speed measurement line of other interfaces, and only retain the speed signal of one fan. | ||
| 1：Packaging | 2：Length | 3：Connector | 4：Color | 5：Wire Diameter |
