| Quantity: | |
|---|---|
| 100 pieces per pack，Please consult us for actual packaging size and weight. | value | |
| Product Name | Motherboard fan extension cable | |
| Product Length | total length 35cm | |
| Product customization | If you need other lengths/colors/styles/methods, you can contact customer service for customization | |
| Wire Model | 1007-24AWG | |
| Insulation material | PVC insulation | |
| Conductor specifications | 11/0.12TS | |
| Conductor material | Tinned copper | |
| Outer diameter of wire | OD 1.3mm | |
| Rated temperature | 80℃ | |
| Wire color | White (color can be customized) | |
| Product weight | about 8g | |

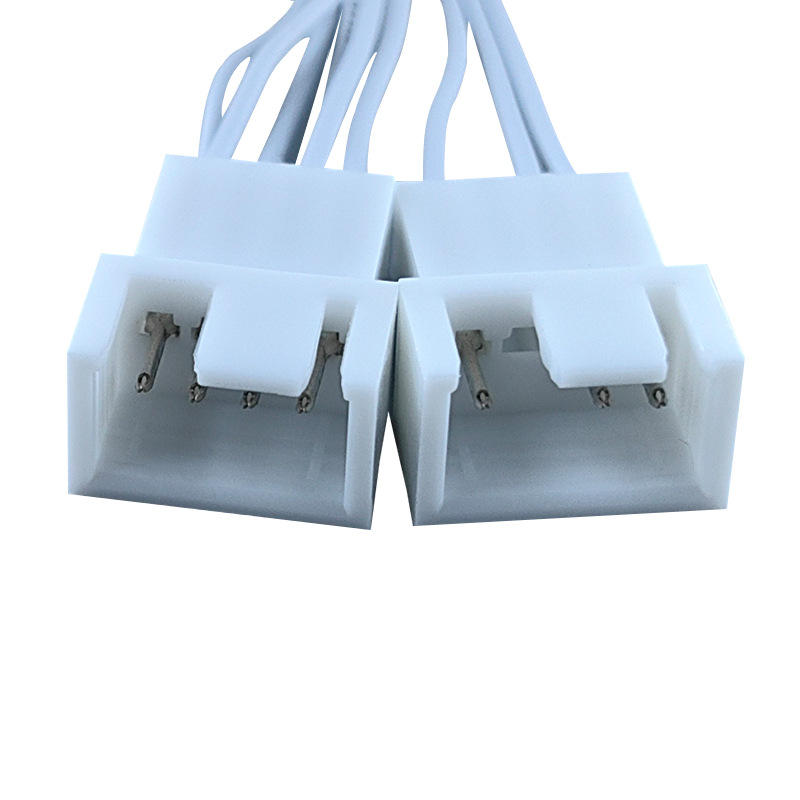

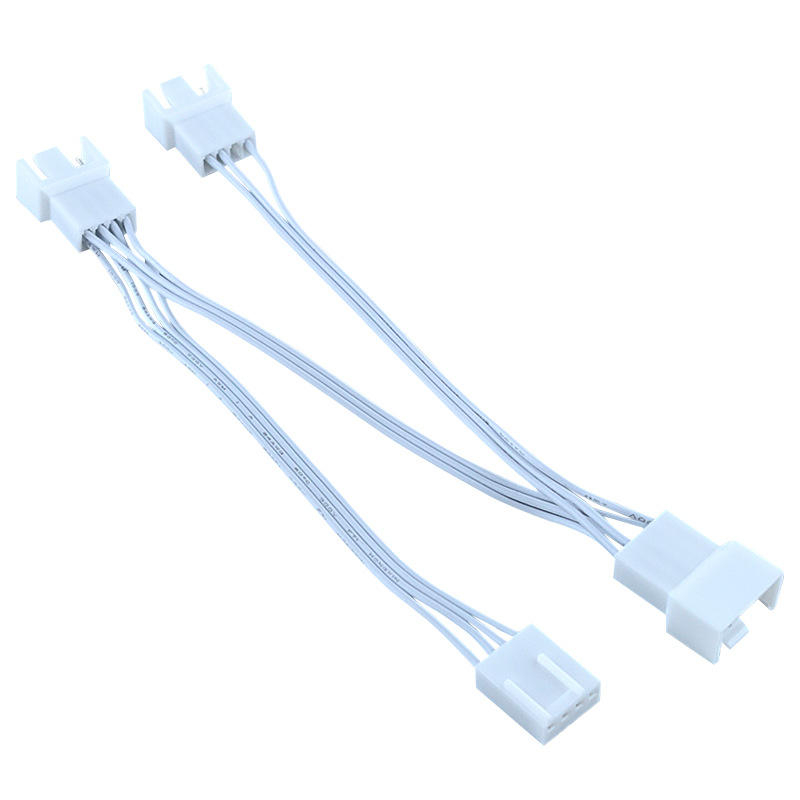

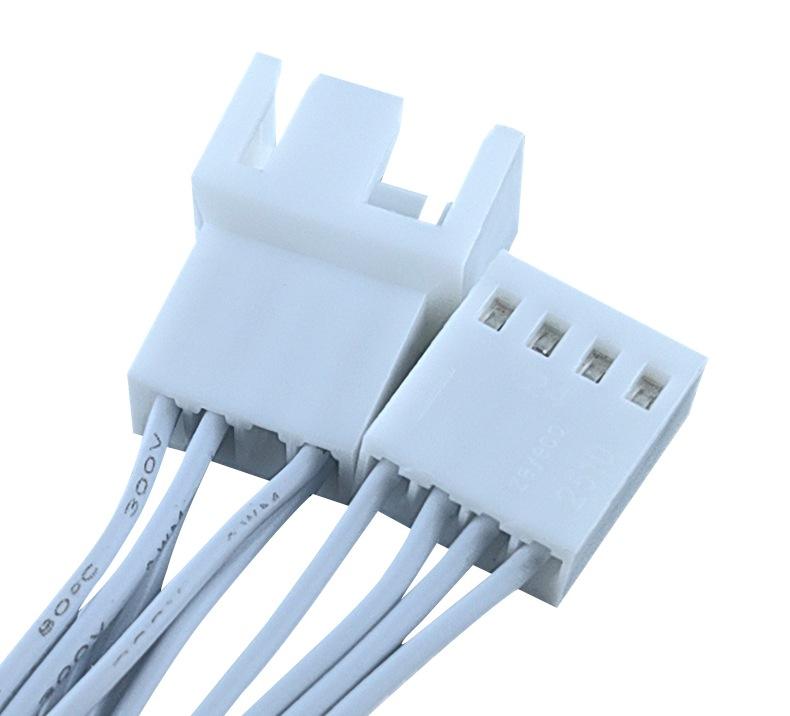

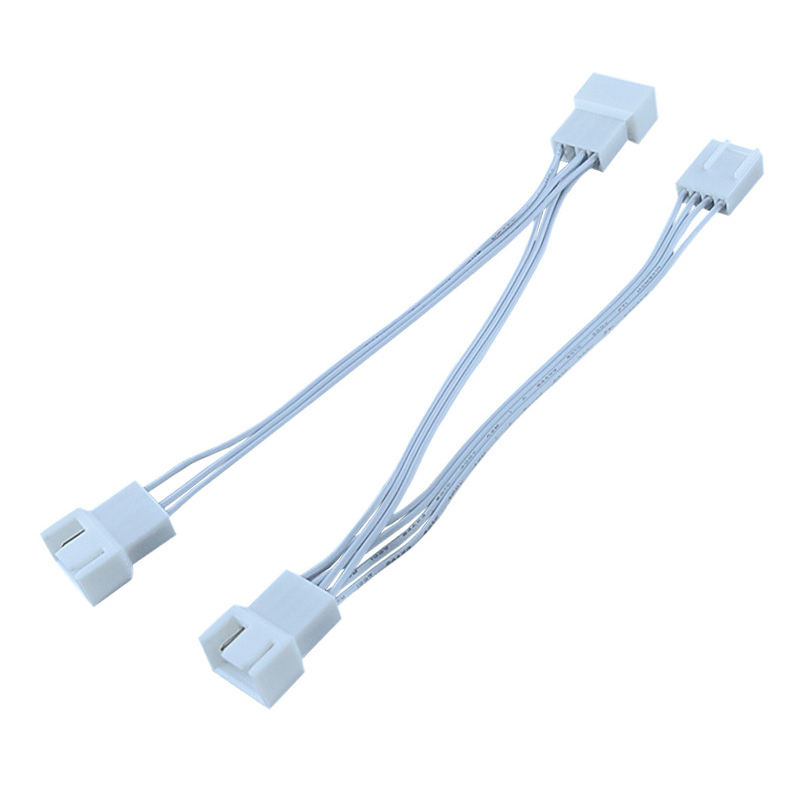

| Product connector | One end, the motherboard small 4pin connector, the other end, the three are fan small 4Pin connectors, one is 4-pin, and the other is 3-pin | |
| Purpose: If the CPU fan (4Pin) cable is not long enough and the motherboard interface is not enough, it supports 3Pin. Mainly extending and extending interfaces. | ||
| Important Note: In order to avoid signal conflicts in simultaneous speed measurement, as long as there is one 4 needles (supports speed measurement and temperature control), the other interfaces are 3 needles. | ||
| Reason: Because even the same model of fans may have different speeds. If you use the motherboard to measure more than 2 fans withdifferent speeds at the same time, the motherboard will strike, which will result in the failure of the temperature control and speed measurement functions. Therefore, one speed measurement line of other interfaces must be removed and only the speed signal of one fan is retained. Other fans can also have the effect of temperature control and speed regulation. | ||
| 1：Packaging | 2：Length | 3：Connector | 4：Color | 5：Wire Diameter |
