| Quantity: | |
|---|---|
| 100 pieces per pack，Please consult us for actual packaging size and weight. | value | |

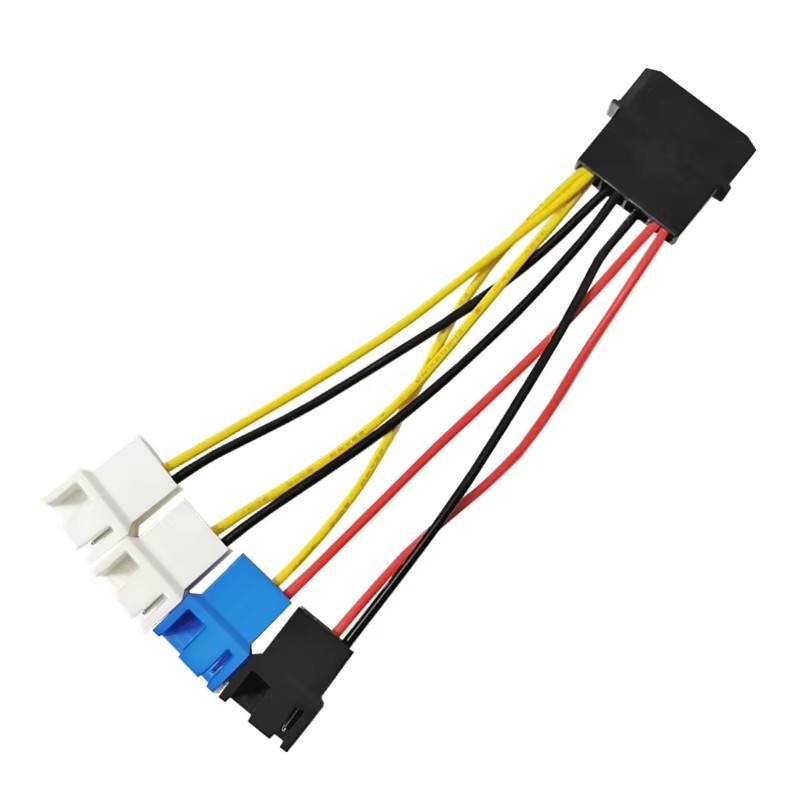

| Product Name | Big 4Pin to small 4Pin/3Pin fan 3-speed line | |
| Product Length | full length 12.5CM | |
| Product customization | If you need other lengths/colors/styles/methods, you can contact customer service for customization | |
| Wire Model | 1007-22AWG | |
| Insulation material | PVC insulation | |
| Conductor specifications | 17/0.14TS | |
| Conductor material | Tinned copper | |
| Outer diameter of wire | OD 1.6mm | |
| Rated temperature | 70℃ | |
| Wire color | black/yellow/red (color can be customized) | |
| Product weight | about 11g | |

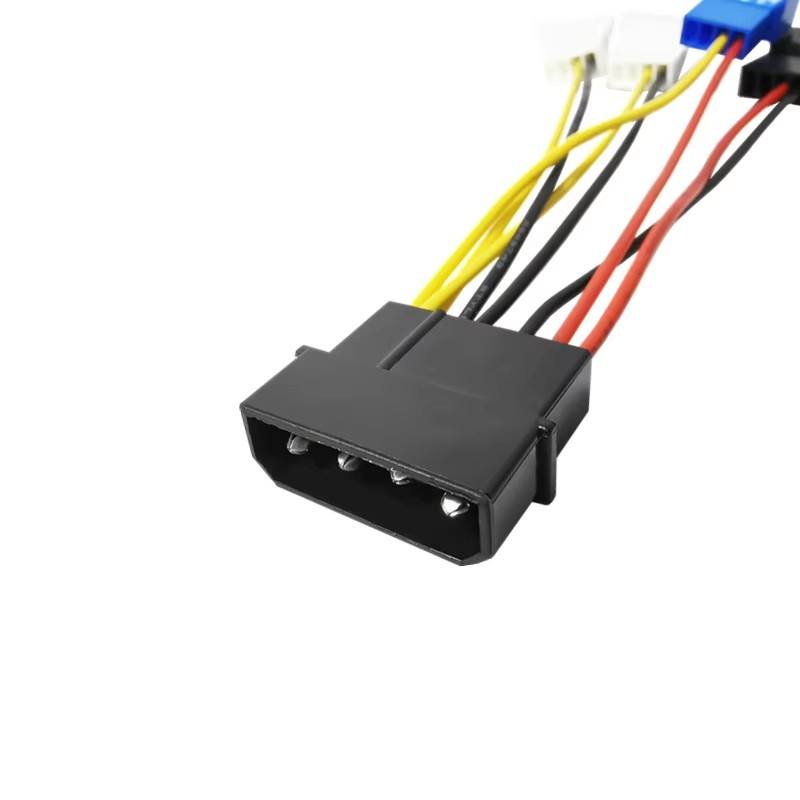

| Product connector | power supply large 4Pin to small 4Pin interface, one divided into four channels (2*12V, 1*7V, 1*5V) | |
| Product function | Because it is only used for power supply, each small 4P plastic case is actually connected to only 2 wires. This power supply has no speed measurement and temperature control functions. | |
| Instructions for use: 2 channels of 12V voltage, 12V fan runs at full speed normally (12V is yellow/black/line, white small 3Pin) 1 channel 7V voltage, 12V fan using 7V can reduce the speed and reduce wind noise! (7V red/yellow/line, blue small 3Pin) 1 channel 5V voltage, 12V fan using 5V can reduce the speed and reduce wind noise! (5V red/black/line, black small 3Pin) | ||
| Because it is only used for power supply, each small 3P plastic case is actually connected to only 2 wires. This power supply has no speed measurement and temperature control functions. | ||
| 1：Packaging | 2：Length | 3：Connector | 4：Color | 5：Wire Diameter |
