| Quantity: | |
|---|---|
| 100 pieces per pack，Please consult us for actual packaging size and weight. | value | |

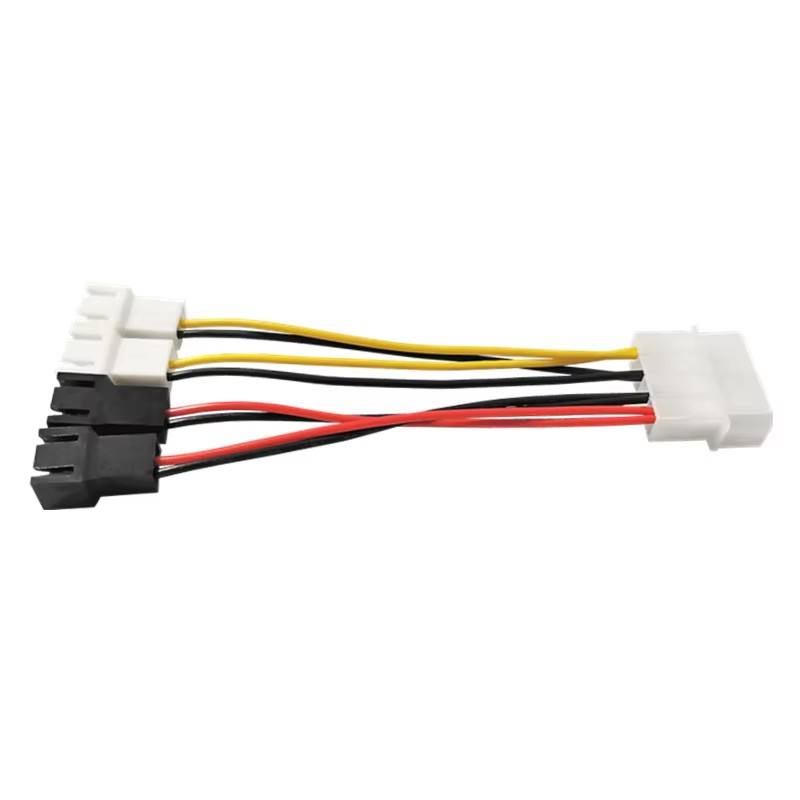

| Product Name | Large 4Pin to small 3Pin fan 2-speed speed control line | |
| Product Length | full length 12.5CM | |
| Product customization | If you need other lengths/colors/styles/methods, you can contact customer service for customization | |
| Wire Model | 1007-22AWG | |
| Insulation material | PVC insulation | |
| Conductor specifications | 17/0.14TS | |
| Conductor material | Tinned copper | |
| Outer diameter of wire | OD 1.6mm | |
| Rated temperature | 70℃ | |
| Wire color | black/yellow/red (color can be customized) | |
| Product weight | about 9g | |
| Product connector | One end is big 4Pin, the other end is 4 small 3Pin ports (2*12V, 2*5V) | |
| Product function | To solve the problem of insufficient 3Pin interface, changing to a different interface can reduce the fan speed | |
| Instructions for use: 2-way 12V power supply, 12V fan is normal full-speed operation (12V is yellow/black/wire, white small 3Pin) 2-way 5V power supply, 12V fan using 5V can reduce the speed and reduce wind noise! (5V is red/black/line, black small 3Pin) | ||
| Because it is only used for power supply, each small 3P plastic case is actually connected to only 2 wires. This power supply has no speed measurement and temperature control functions. | ||
| 1：Packaging | 2：Length | 3：Connector | 4：Color | 5：Wire Diameter |
