| Quantity: | |
|---|---|
| 100 pieces per pack，Please consult us for actual packaging size and weight. | value | |

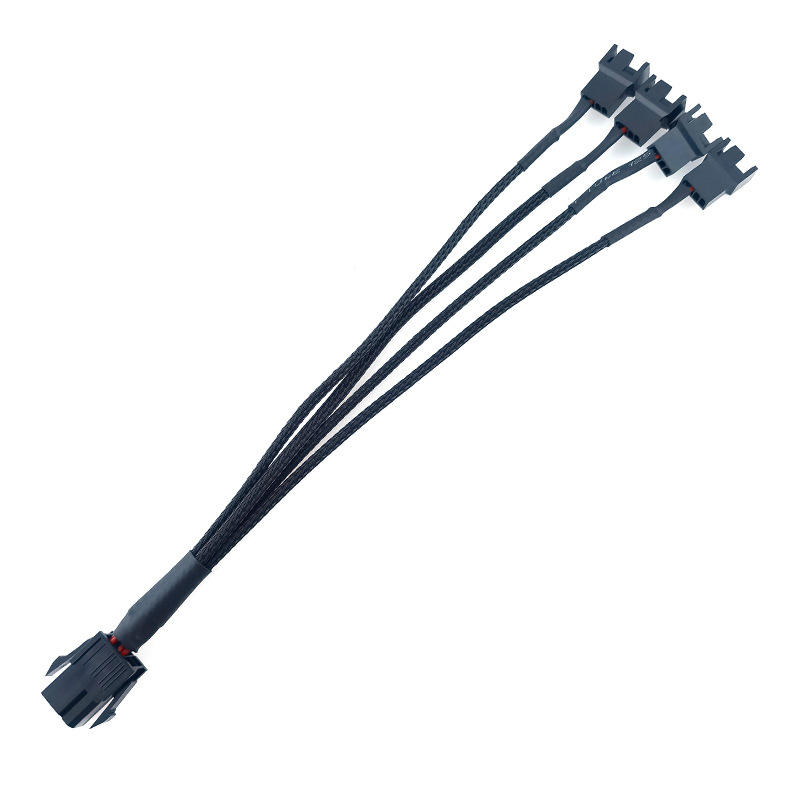

| Product Name | power supply 6Pin pin end to small 4/3Pin fan one-to-four conversion cable (with nylon mesh) | |
| Product Length | full length 27CM | |
| Product customization | If you need other lengths/colors/styles/methods, you can contact customer service for customization | |
| Wire Model | 1007-22AWG | |
| Insulation material | PVC insulation | |
| Conductor specifications | 17/0.12TS | |
| Conductor material | Tinned copper | |
| Outer diameter of wire | OD 1.6mm | |
| Rated temperature | 80℃ | |
| Wire color | black (color can be customized) | |
| Product weight | about 20g | |

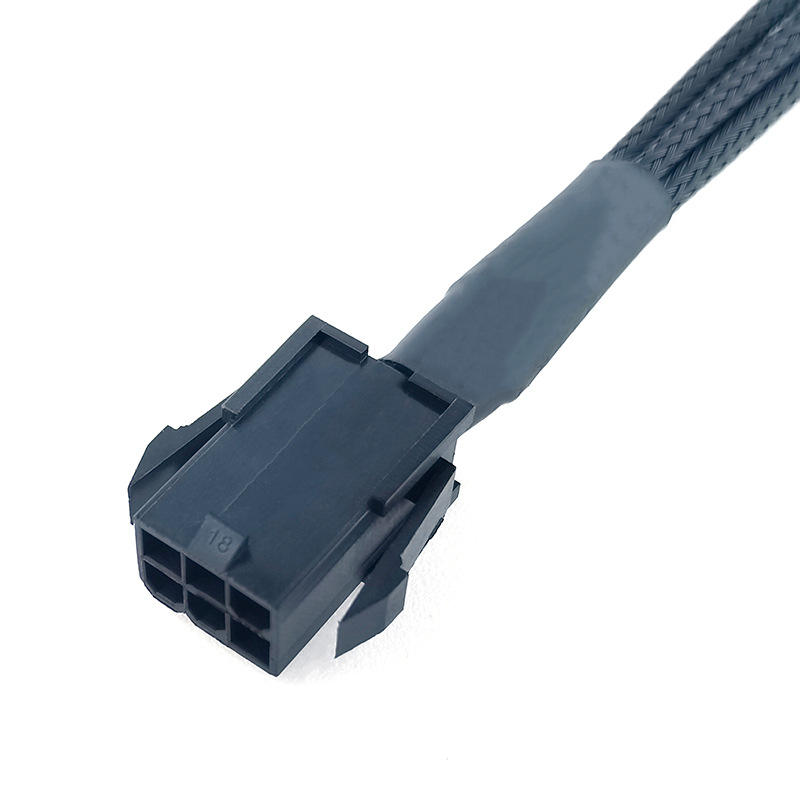

| Product connector | the power supply 6Pin pin end to the small 4/3Pin interface, one point and four lines (4 are all 12V) | |
| Product function | Solve the problem that the 4/3Pin interface is not enough | |
| Product usage | The 6Pin port of the power supply can start four 12V fans at the same time! | |
| Instructions for use | four-way 12V power supply, the 12V fan runs at full speed normally. | |
| Because it is only used for power supply, each small 4Pin plastic shell is actually connected to only 2 wires. This power supply has no speed measurement and temperature control functions. | ||
| 1：Packaging | 2：Length | 3：Connector | 4：Color | 5：Wire Diameter |
