| Quantity: | |
|---|---|

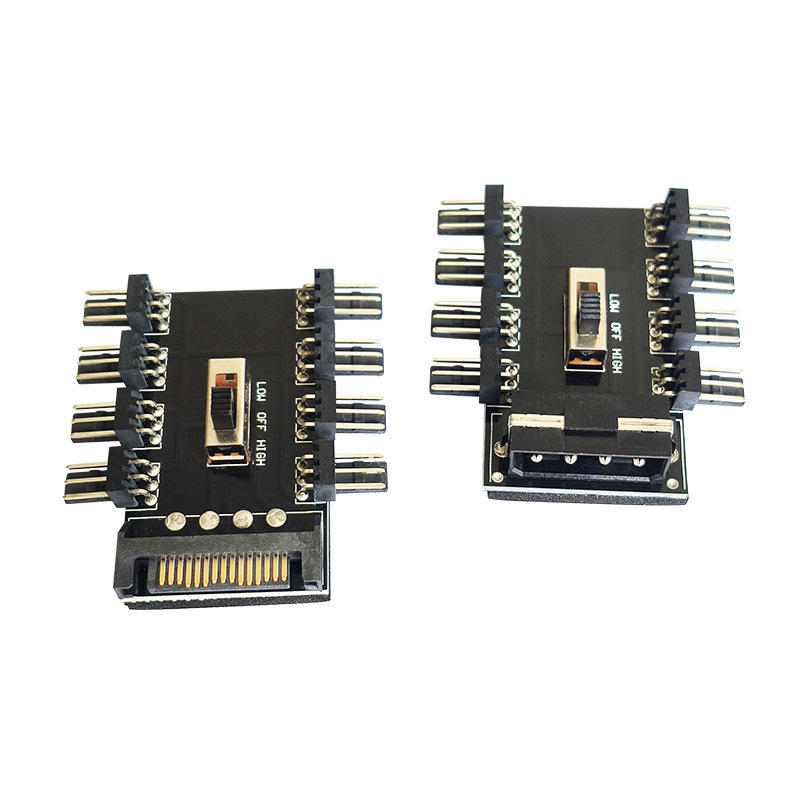

| Product Name | 8-way 3-speed speed regulator | |
| Model | S3-8/D3-8 | |
| Rated Voltage | 12V DC | |
| Max Current | 4.5A | |
| Power interface | SATA/IDE D-type | |
| Number of interfaces | 8-ports Molex 3-pin/4-pin | |
| Number of speed switches | 1 | |
| Product Size | 57*51*27mm | |
| Package | Bagged | |
| The parameters are subject to actual parameters and are subject to change without prior notice. | ||
| Function： Suitable for 12V 3Pin fans (supports 4Pin fans, but does not support PWM), powered by the SATA interface, supports 8-channel 3Pin fans to start at the same time, solving the insufficient motherboard interface. Without speed measurement and PWM functions, the gear can be adjusted manually, the fan can be started at full speed (HIGH) or low speed (LOW) or the fan can be turned off (OFF). Note： When the 1ow gear is used, the brightness of the LED light will decrease or not be lit. A small number of fans that do not support low-voltage start-up will not rotate when the low gear is installed: The rear EVA double-sided tape can be fixed to the chassis. Warm reminder： If the batches are different or the line is upgraded, the appearance of the product may change. If the product pictures are not updated in time, the actual item will be received. We guarantee that the same function will be better quality. | ||
| 1：Packaging | 2：Length | 3：Connector | 4：Color | 5：Wire Diameter |
