①▲In above this picture, we’ll help you identify all included parts and walk you through the installation.Accessories includes:
A,For Intel Backplate.
B,For Intel/2011 Bracket.
C,For Intel 115X/1700 Screws(Fine Thread).
D,For LGA2011 Screws(Coarse Thread).
E,For AMD Bracket.
F,Bracket(B/E) Mounting Screws.
G,Radiator 120/240/360 Mounting Screws.
H,Thermal Paste.
②Follow these 4 steps shown in the diagram below to complete your liquid cooler installation.▼
Step 1: Select the correct mounting hardware for your platform (Intel(B-C-F)/LGA2011(B-D-F)/AMD(E-F),Align The Bracket's Locating Notch Inward).

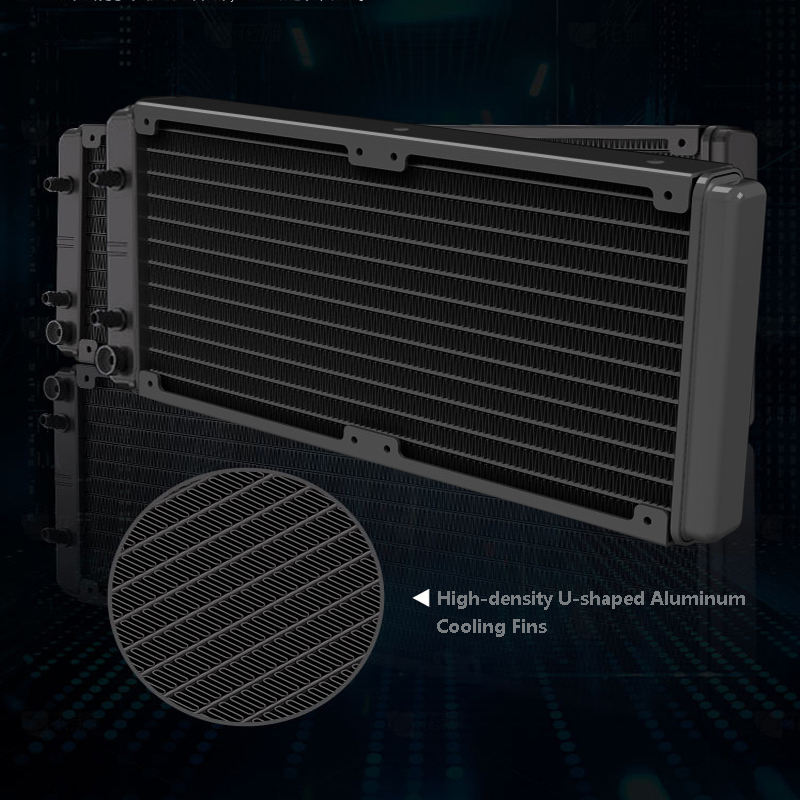

Step 2:Secure the radiator to the PC case using the included radiator screws(G).
Step 3:Remove the protective film from the cold plate and apply thermal paste(H) evenly across the CPU's heat spreader.
Step 4:Install the water block using the corresponding hardware for each platform:
1.Intel(A-C)：Secure the water block using Backplate(A) and Screws(C)for Intel LGA115x /1200/
1700/ 1851/1356/1366 Platforms.
2.LGA2011(D)：Secure the water block using Screws(D) for LGA2011 X79 X99 E5 Platforms. Note:Designed Exclusively For Square ILM (80mm x 80mm)Threaded Mounting Base On LGA2011.
3.AMD (E)：Secure the water block using AMD bracket screws(D) for AM5 AM4 Platforms.
Note:For AMD,Remove The Stock Brackets, Retaining The Original Backplate.
Congratulations on completing the hardware installation!
I will now guide you through the cable connections.
