| Quantity: | |
|---|---|
| 100 pieces per pack，Please consult us for actual packaging size and weight. | value | |
| Product Name | High-Power DC5521 to Molex 4-Pin 1-to-2 Fan Splitter Cable | |
| Product Length | Total 35cm (Main cable: 20cm / Branch cables: 15cm each) | |
| Product customization | If you need other lengths/colors/styles/methods, you can contact customer service for customization | |
| Wire Model | 2464 (Main: 22AWG / Branches: 24AWG) | |
| Insulation material | PVC insulation | |
| Conductor specifications | Main cable: 2×17 strands 0.15mm oxygen-free copper Branch cables: 2×11 strands 0.15mm oxygen-free copper | |
| Conductor material | Oxygen-free Copper | |

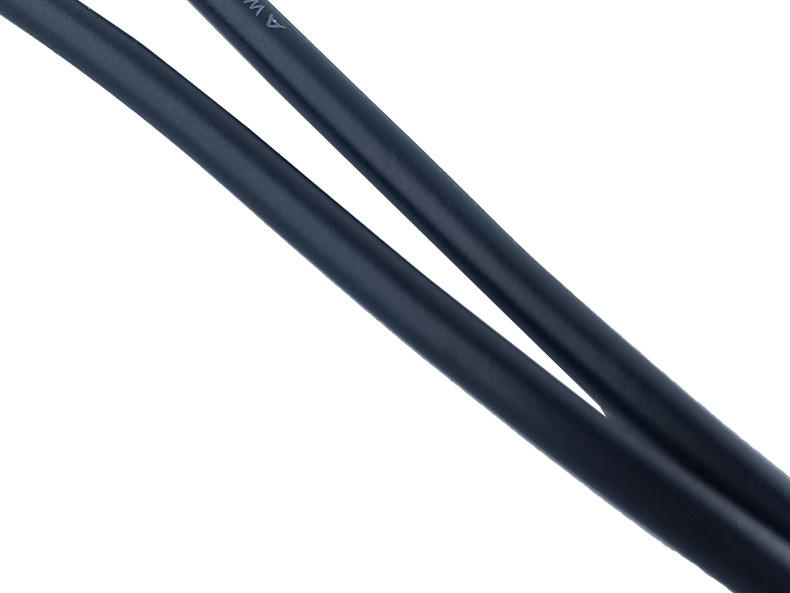

| Outer diameter of wire | 3.5mm (both main and branches) | |
| Rated temperature | 80℃ | |
| Wire color | black (color can be customized) | |
| Weight | 23g | |

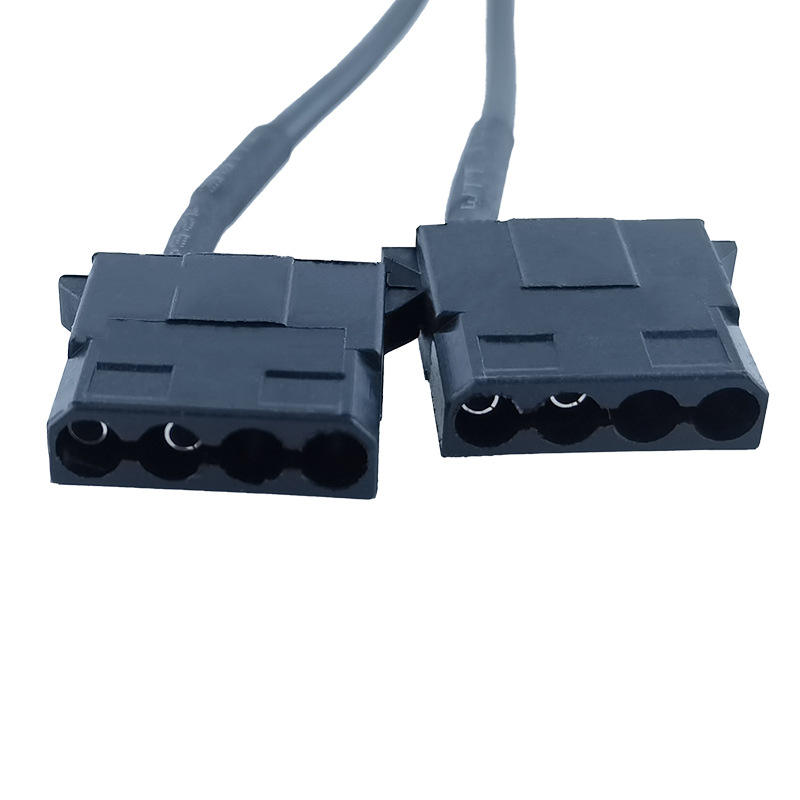

| Product connector | Input: DC5521 female Output: 2×4-Pin PWM fan connectors (compatible with 3-Pin fans) | |
| Product function | Converts 12V/9V/5V power adapter output to Molex 4-Pin interface | |
| Product Description: This cable allows chassis fans to operate with external power adapters. Note: 1. Lower voltage = slower fan speed (below rated voltage) 2. Exceeding rated voltage may damage fans (standard fans typically rated for 12V) 3. Suitable for fans drawing ≤2.3A each 4. Total fan power consumption must not exceed power adapter's maximum output Technical Note: The Molex 4-Pin interface utilizes only 2 wires (power/ground) despite having 4 contacts, as DC power transmission requires just two conductors. | ||
| 1：Packaging | 2：Length | 3：Connector | 4：Color | 5：Wire Diameter |
