| Quantity: | |
|---|---|
| 100 pieces per pack，Please consult us for actual packaging size and weight. | value | |
| Product Name | DC 5521 Female TO Large 4Pin Male Adapter Cable | |
| Product Length | total length 27cm | |
| Product customization | If you need other lengths/colors/styles/methods, you can contact customer service for customization | |
| Wire Model | 2464 24AWG | |
| Insulation material | PVC insulation | |
| Conductor specifications | 18/0.1TS | |
| Conductor material | pure copper | |
| Outer diameter of wire | OD 1.9mm | |
| Rated temperature | 80℃ | |
| Wire color | black (color can be customized) | |
| Weight | 11g | |

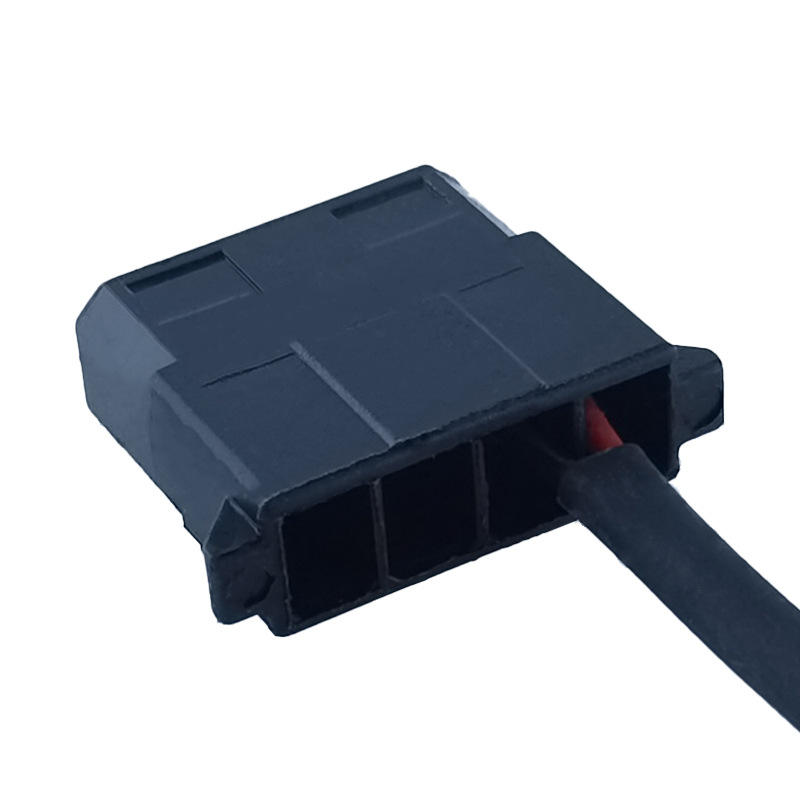

| Product connector | One end has a large 4pin male connector, and the other end has a DC 5521 female interface | |
| Product function | The 12V 9V 5V power adapter interface can be converted into a large 4Pin interface for power supply. | |
| Introduce: When the chassis fan uses an external power adapter, the lower the selected voltage, the slower the speed will be. The fan will burn out if the voltage exceeds the rated voltage. The common rated voltage of the fan is 12V. The power of the power supply represents the maximum power value that can be continuously provided. Generally, the total power of the fan should not exceed the maximum power of the power supply. This wire is a large 4Pin interface, which can actually use 4 wires, because only 2 wires are needed for DC power supply, so only 2 wires are used. | ||
| 1：Packaging | 2：Length | 3：Connector | 4：Color | 5：Wire Diameter |
