| Quantity: | |
|---|---|
| 50 pieces per pack，Please consult us for actual packaging size and weight. | value | |
| Product Name | Nylon mesh 4 PIN One-to-five hub (Connecting Cable is Detachable) | |
| Product Length | full length 40CM | |
| Product customization | If you need other lengths/colors/styles/methods, you can contact customer service for customization | |
| Wire Model | 1007-22AWG | |
| Insulation material | PVC insulation | |
| Conductor specifications | 17/0.14TS | |
| Conductor material | Tinned copper | |
| Outer diameter of wire | OD 1.6mm | |
| Rated temperature | 80℃ | |
| Wire color | black (color can be customized) | |
| Product weight | about 16g | |
| Product connector | One end of the computer motherboard 4Pin interface, the other end of the 5 4Pin headers. | |
| Product function | Make 5 computer fans share a 4Pin interface | |
| Product features | Support multi-channel PWM fans, compatible with 3PIN, 4PIN fans, support chassis wiring, with adhesive, you can fix the hub on the chassis. | |
| Scope of application | Suitable for 12V 3PIN/4PIN fans. | |

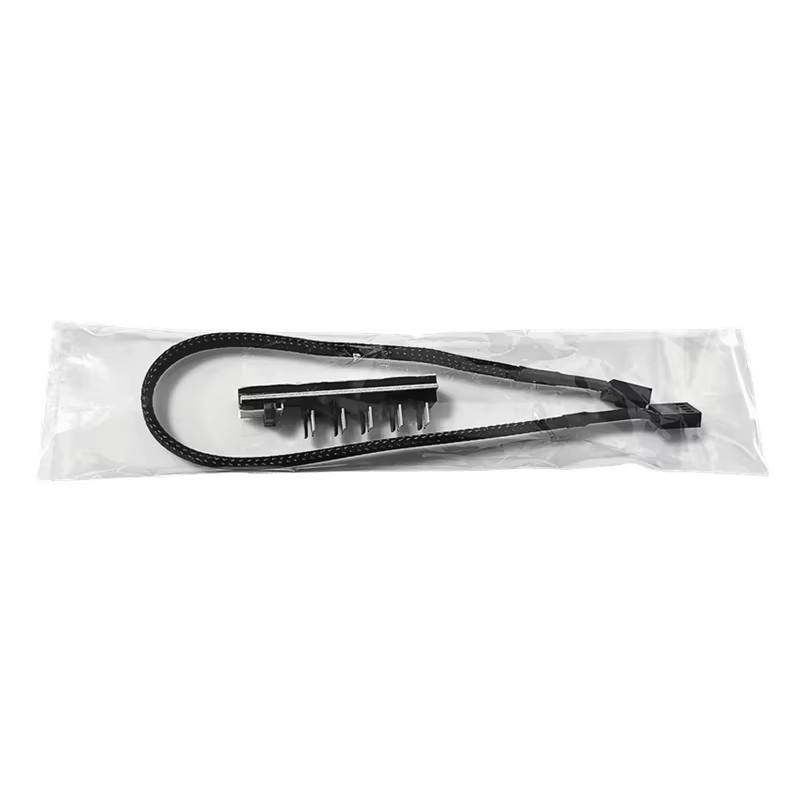

| Packing method | Independent packaging | |

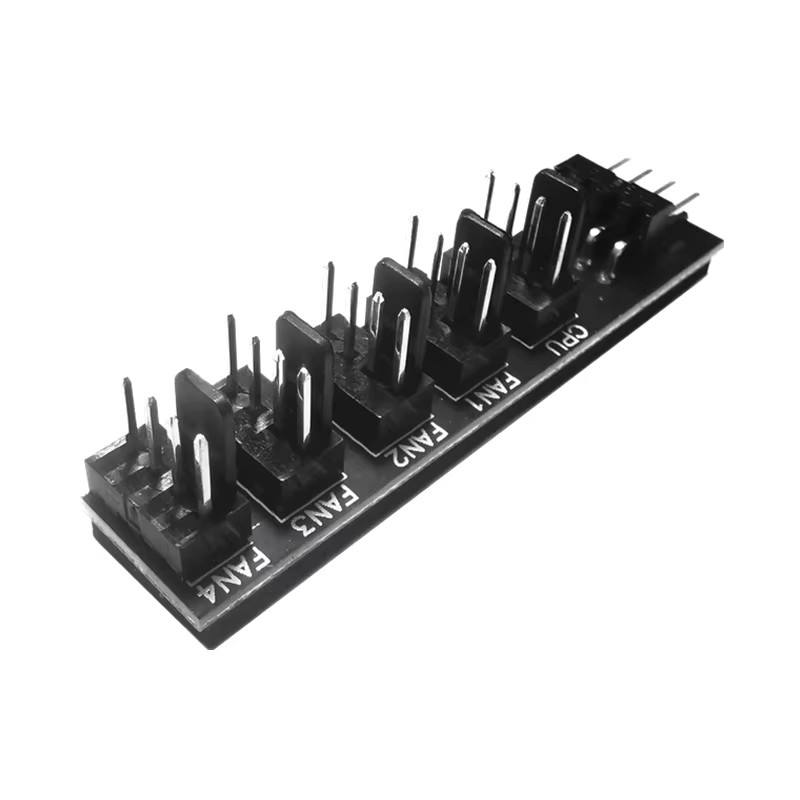

| Purpose: 1,1 points 5 ports, one-time solution to the embarrassment that the motherboard fan ports are not plugged in enough! 2.Expand the 3-pin/4-pin interface of the 5-position fan, solve the lack of motherboard interface, and concentrate on processing fan wires. 3.The pwm interface is connected to the motherboard cpu fan interface, the first dedicated interface for cpu fan. 4. TheFAN1/FAN2/FAN3/FAN4 interface is a pwm conventional fan interface. | ||
| This product is a hub, and the function is to expand a single motherboard four-pin port into multiple ports. If your fan is a 3-pin fan, you can also plug it in, but it cannot achieve PWM control speed! Please be careful! | ||
| 1：Packaging | 2：Length | 3：Connector | 4：Color | 5：Wire Diameter |
