Dual Fan Adapter: PH2.0 4-Pin to Standard 4-Pin Converter for GPU & Motherboard Fan Extension

100 pieces per pack，Please consult us for actual packaging size and weight.

Product Name

Graphics card PH2.0 small 4pin to 3/4pin one-point two-fan extension adapter cable

Product Length

total length 14cm

Product customization

If you need other lengths/colors/styles/methods, you can contact customer service for customization

Wire Model

1007-24AWG

Insulation material

PVC insulation

Conductor specifications

11/0.12TS

Conductor material

Tinned copper

Outer diameter of wire

OD 1.3mm

Rated temperature

80℃

Product weight

about 5g

Wire color

colored (color can be customized)

Product connector

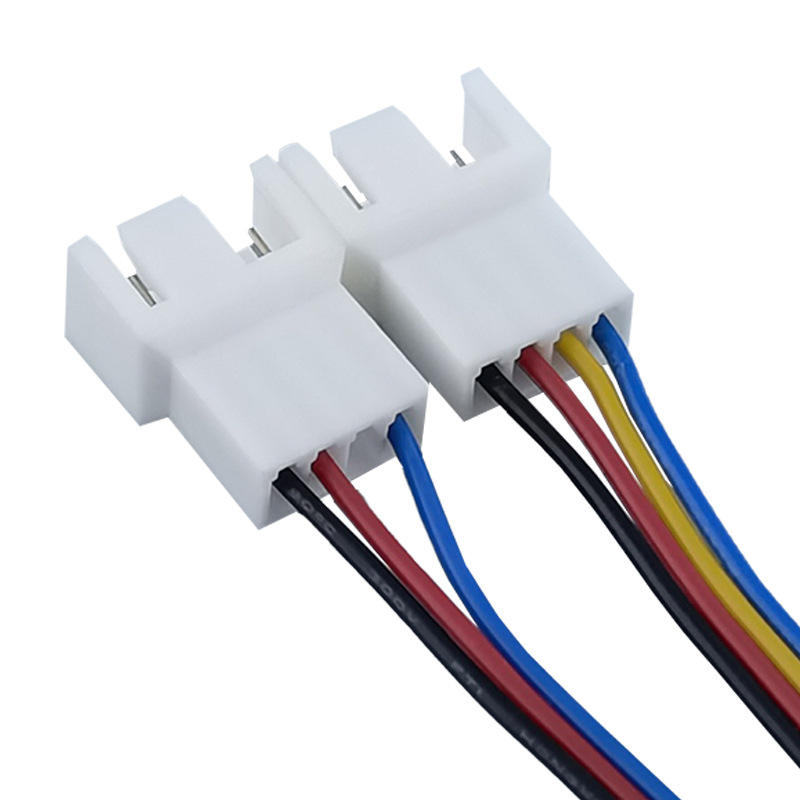

One end of the motherboard graphics card PH2.0 4pin connector, the other end is 2 CPU cooling fan 4Pin interfaces, one is 4-pin interface and the other is 3-pin interface

【Purpose】: The two cooling fans share a graphics card PH2.0 4Pin interface. If the CPU cooling fan (4Pin) cable is not long enough
and the motherboard interface is not enough, it supports 3Pin. Mainly extending and extending interfaces.

The two ends of this line are divided into four lines, the colors are [blue, yellow, red, and black]. The colors of the other end
of the line are [blue, red, and black].

[Important Note]: In order to avoid signal conflicts in simultaneous speed measurement, as long as there is one 4 needles(supports
speed measurement and temperature control), the other interfaces are 3 needles.

[Reason]: Because even fans of the same model may have different speeds. If you use the motherboard to measure more than 2 fans of
different speeds at the same time, the motherboard will strike, which will result in the failure of the temperature control and
speed measurement functions. Therefore, one (yellow) speed measurement line of other interfaces needs to be removed and only one
fan's speed signal is retained. Other fans can also have the effect of temperature control and speed regulation.
