| Quantity: | |
|---|---|
| 50 pieces per pack，Please consult us for actual packaging size and weight.. | value | |

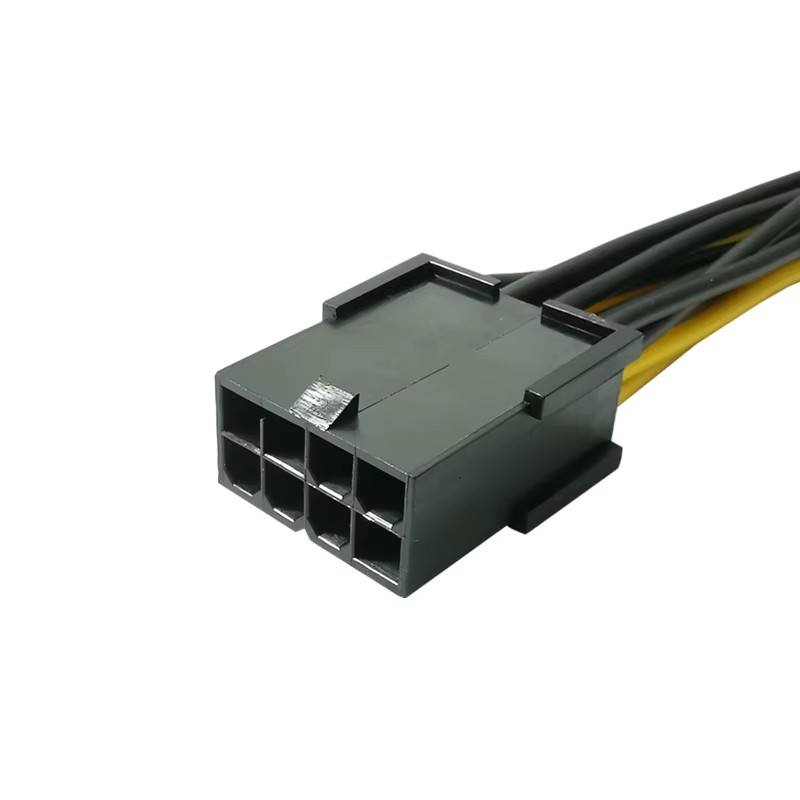

| Product Name | 8P to dual 8P (6+2) graphics card power cord | |
| Product Length | full length 22CM | |
| Product customization | If you need other lengths/colors/styles/methods, you can contact customer service for customization | |
| Wire Model | 1007-18AWG | |
| Insulation material | PVC insulation | |
| Conductor specifications | 28/0.12TS | |
| Conductor material | pure copper | |
| Outer diameter of wire | OD 2.0 mm | |
| Rated temperature | 80℃ | |
| Withstand power | 90W+90W | |
| Wire color | black (color can be customized) | |
| Product connector | 8-pin female PCIe, 2x(6 + 2)pin male PCIe | |
| When the 8PIN power cord of the host power supply is not long enough, you can use this line to extend it. The 8PIN of the graphics card is a combination of 6PIN+2PIN. You can remove the 2PIN and use it on the graphics card with the 6PIN interface. The quality is good and the use is stable. | ||
| Because some power supplies have only one 8P interface, and graphics cards need multiple connectors, for example, dual 6P, 8P, 6+2P cables can easily solve these problems! The connector is designed as magic 6+2, which can be used as 8P or 6P! | ||
| Warning: Do not overload the use. It is very dangerous to operate at a power exceeding 90W on a single 6 + 2 pin connector. | ||
| 1：Packaging | 2：Length | 3：Connector | 4：Color | 5：Wire Diameter |
