| Quantity: | |
|---|---|
| 100 pieces per pack，Please consult us for actual packaging size and weight. | value | |
| Product Name | Computer motherboard 4pin to graphics card PH2.0 4pin one-point two-fan adapter cable | |
| Product Length | total length 13.5cm | |
| Product customization | If you need other lengths/colors/styles/methods, you can contact customer service for customization | |
| Wire Model | 1007-24AWG | |
| Insulation material | PVC insulation | |
| Conductor specifications | 11/0.12TS | |
| Conductor material | Tinned copper | |
| Outer diameter of wire | OD 1.3mm | |
| Rated temperature | 80℃ | |
| Product weight | about 5g | |
| Wire color | colored (color can be customized) | |

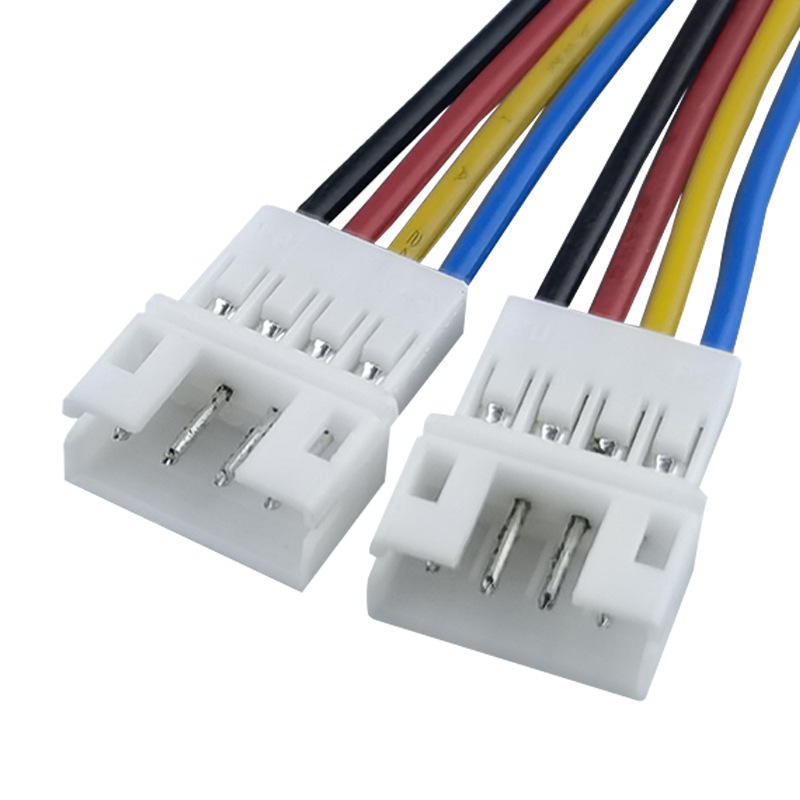

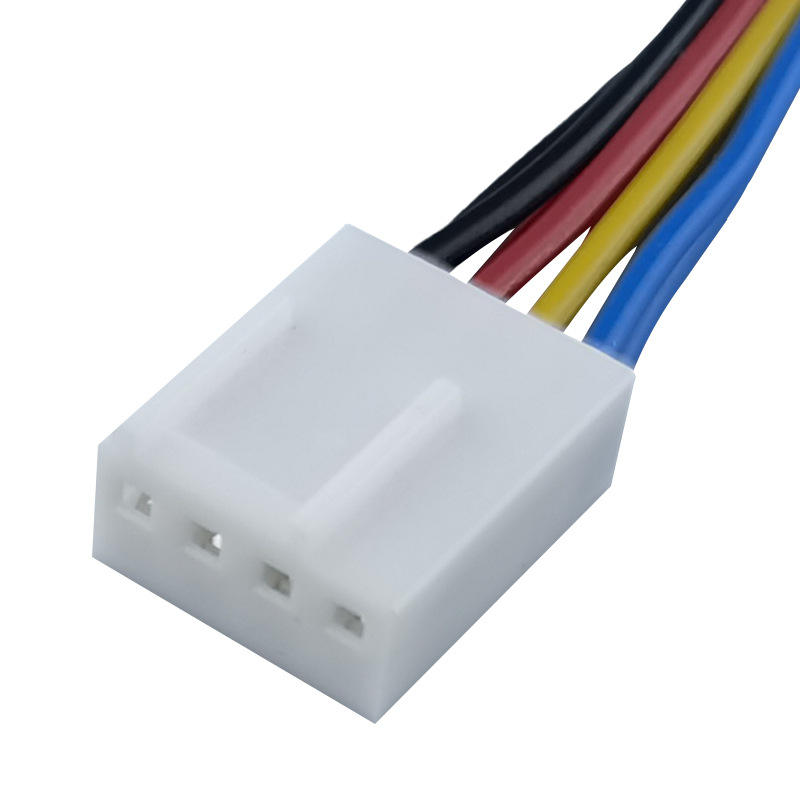

| Product connector | One end of the motherboard 4pin connector, the other end is connected to two PH2.0 small 4P fan interfaces, the other one is a 4-pin interface | |
| 【Purpose】: Two graphics card cooling fans share a motherboard 4Pin interface power supply. If the fan (graphics card PH2.0 small 4Pin) cable is not long enough and the motherboard interface is not enough. Supports 3Pin. Mainly extending and extending interfaces. If your graphics card fan is a 3-pin fan, you can also plug it in, but it cannot achieve PWM temperature control speed! Please becareful! This line method: the second end is four lines, the colors are [blue, yellow, red, and black]. If you need to customize,you can contact customer service. | ||
| 1：Packaging | 2：Length | 3：Connector | 4：Color | 5：Wire Diameter |
