| Quantity: | |
|---|---|
| 50pieces per pack，Please consult us for actual packaging size and weight. | value | |

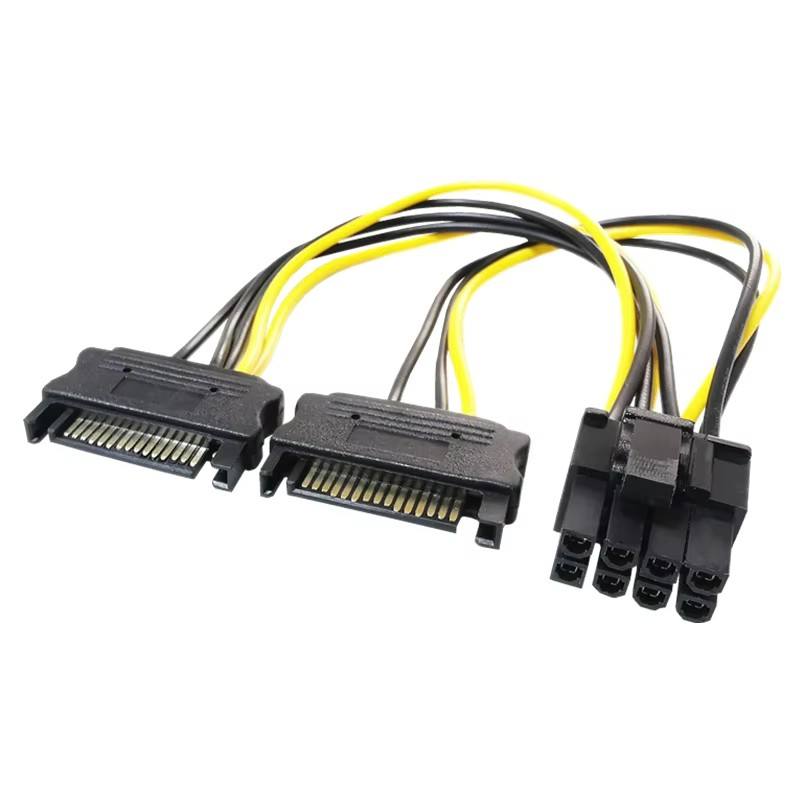

| Product Name | Dual SATA to 8Pin (6Pin+2Pin) graphics card power cord | |
| Product Length | full length about 20CM | |
| Product customization | If you need other lengths/colors/styles/methods, you can contact customer service for customization | |
| Wire Model | 18AWG | |
| Insulation material | PVC insulation | |
| Conductor specifications | 22/0.12TS | |
| Conductor material | pure copper | |
| Outer diameter of wire | OD 2.0mm | |
| Rated temperature | 80℃ | |
| Wire color | black (color can be customized) | |
| Product weight | about 20g | |

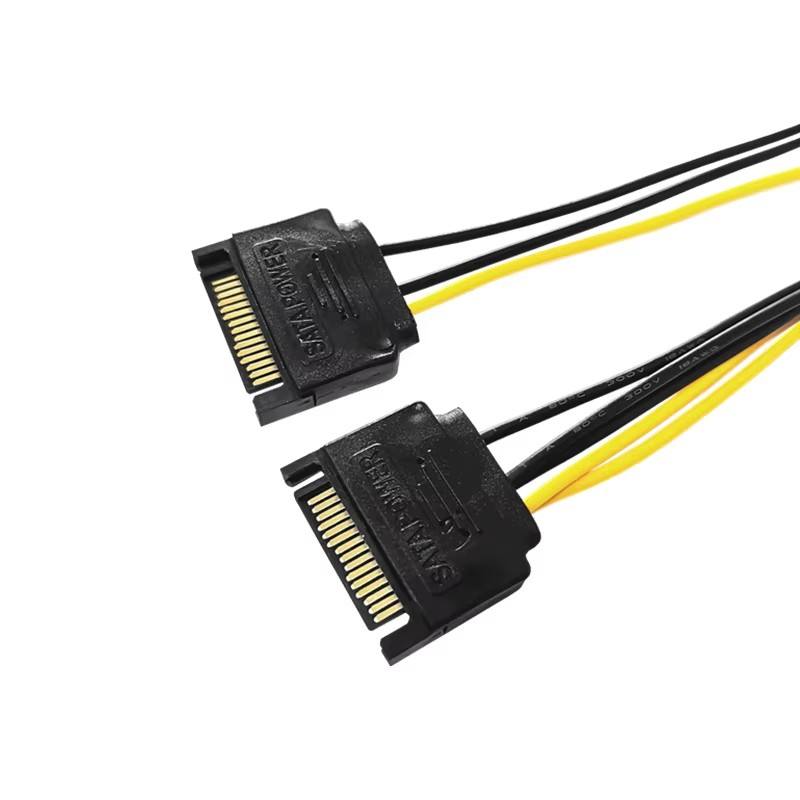

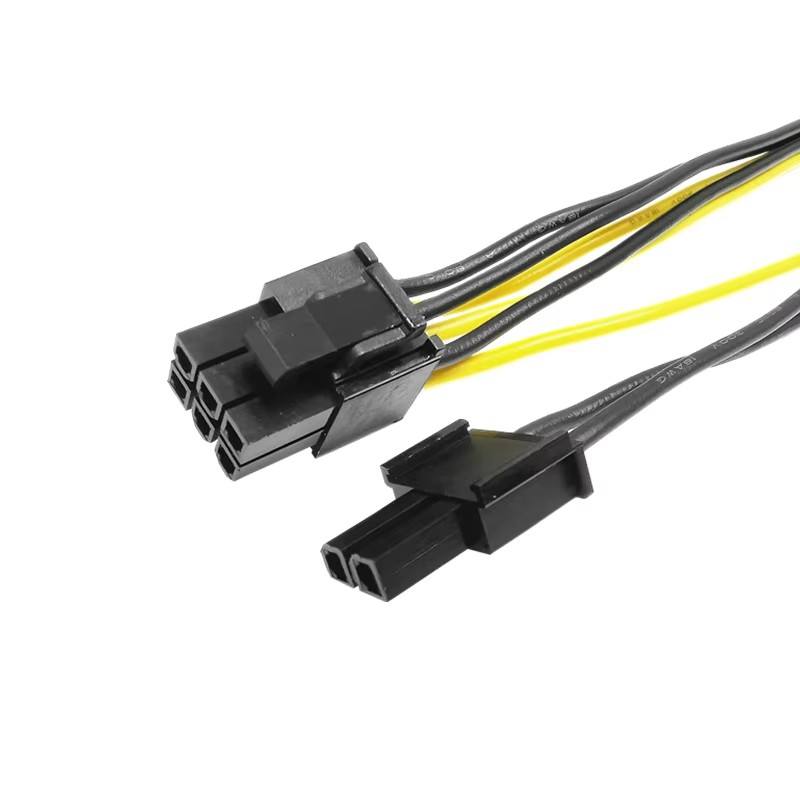

| Product connector | One end is dual SATA male interface, the other end is 8Pin (6+2Pin) interface | |
| Product Features: In order to save costs, the current computer power supply is suitable for when there is no 8PIN (6+2Pin) graphics card power supply port, or when the power supply port is not enough when multiple graphics cards are used for mining design or mining, the single-line current is not enough. Now the problem can be solved with this conversion cable. The SATA power supply can be directly converted to the 8PIN power port of the graphics card, which increases the power supply current of the graphics card. | ||
| Purpose: Because high-end graphics cards use 8PIN power supply, the current is relatively large, and the current of a single SATA port is not enough. It is recommended to use two SATA ports to provide 12V power to the 8PIN (6+2Pin) graphics card. | ||
| Warning: Don't overload. Operation with a power exceeding 70W is very dangerous. | ||
| 1：Packaging | 2：Length | 3：Connector | 4：Color | 5：Wire Diameter |
