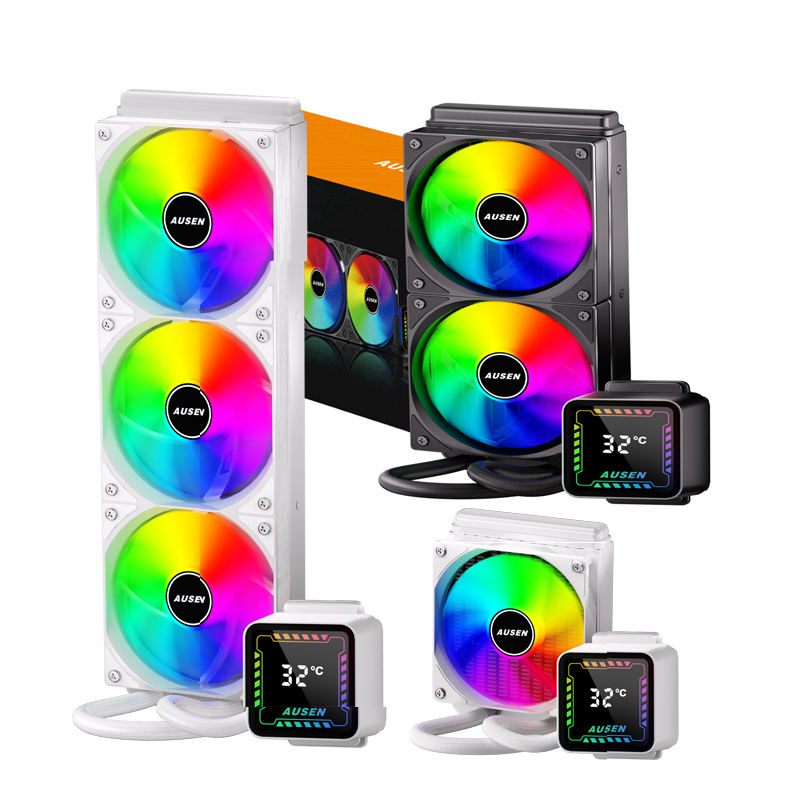

Full-Size 120/240/360mm White & Black 2011 AIO Water Cooler | Universal Support for Latest AM5/LGA1851 & AM4/LGA1700/1200

①▲In above this picture, we’ll help you identify all included parts and walk you through the installation.Accessories includes:
A,For Intel Backplate.
B,For Intel/2011 Bracket.
C,For Intel 115X/1700 Screws(Fine Thread).
D,For LGA2011 Screws(Coarse Thread).
E,For AMD Bracket.
F,Bracket(B/E) Mounting Screws.
G,Radiator 120/240/360 Mounting Screws.
H,Thermal Paste.
②Follow these 4 steps shown in the diagram below to complete your liquid cooler installation.▼
Step 1: Select the correct mounting hardware for your platform (Intel(B-C-F)/LGA2011(B-D-F)/AMD(E-F),Align The Bracket's Locating Notch Inward).
Step 2:Secure the radiator to the PC case using the included radiator screws(G).
Step 3:Remove the protective film from the cold plate and apply thermal paste(H) evenly across the CPU's heat spreader.
Step 4:Install the water block using the corresponding hardware for each platform:
1.Intel(A-C)：Secure the water block using Backplate(A) and Screws(C)for Intel LGA115x /1200/
1700/ 1851/1356/1366 Platforms.
2.LGA2011(D)：Secure the water block using Screws(D) for LGA2011 X79 X99 E5 Platforms. Note:Designed Exclusively For Square ILM (80mm x 80mm)Threaded Mounting Base On LGA2011.
3.AMD (E)：Secure the water block using AMD bracket screws(D) for AM5 AM4 Platforms.
Note:For AMD,Remove The Stock Brackets, Retaining The Original Backplate.
Congratulations on completing the hardware installation!
I will now guide you through the cable connections.

Follow This Wiring Diagram for Proper Liquid Cooler Installation. ▼
Structured Next Steps
1. Power Connections①③
*①The 3-pin Power Connector Of The Water Pump Is Connected To The CPU_OPT/AIO_Pump/W_Pump header on the motherboard.*③The 4-pin PWM Power Cable Of The Fan Is Connected To The CPU_FAN Header On The Motherboard.

2. RGB Wiring (if applicable)②-1/②-2/④
*②-1 The 5V 3-pin RGB Lighting Connector Is Connected To The Motherboard's 5V 3-pin ARGB Header (Requires Motherboard Support For
ARGB).
*②-2 The 5V 3-pin RGB Lighting Connector Of The Water Pump Is Connected To The Fan's 5V 3-pin Header
*④ Connect Other 5V 3-pin ARGB Devices In Series (When Motherboard Power Allowance Permits)
3. Final Checklist
✅ Verify all connectors are fully seated
✅ Route cables to avoid fan obstruction
✅ Keep excess wiring secured with ties

Congratulations! Your AIO Liquid Cooler is now successfully installed! Enjoy ultra-cool performance! If you have any questions,our 24/7 customer support is always ready to assist you.
