| Quantity: | |
|---|---|
| 100 pieces per pack，Please consult us for actual packaging size and weight. | value | |

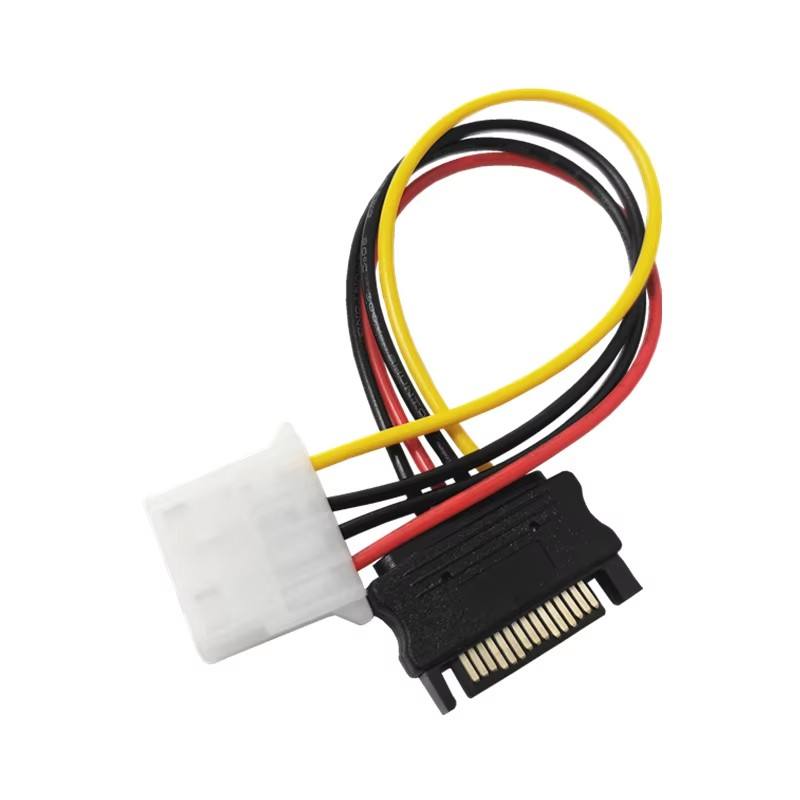

| Product Name | SATA male 15Pin to large 4Pin male power cord | |
| Product Length | full length about 20CM | |
| Product customization | If you need other lengths/colors/styles/methods, you can contact customer service for customization | |
| Wire Model | 18AWG | |
| Insulation material | PVC insulation | |
| Conductor specifications | 22/0.12TS | |
| Conductor material | pure copper | |
| Outer diameter of wire | OD 2.0mm | |
| Rated temperature | 80℃ | |
| Wire color | black/red/yellow | |
| Product connector | One end is a SATA male 15Pin connector, and the other end is a large 4pin male connector | |
| The power end SATA15P (male) turns to a large 4pin/IDE power interface, which can be directly plugged into the power interface of IDE hard disks, optical drives, etc. Applicable to: When the SATA serial power interface on the chassis power supply is redundant,and the IDE power interface is tight, the original power interface does not need to be changed, and the IDE power interface is expanded without destroying the power warranty. | ||
| Convert the chassis SATA serial hard drive power interface to a D-type 4-pin IDE hard drive power interface. | ||
| A large four-pin D-head adapter cable is used for the power supply end SATA to ordinary optical drive hard disk. | ||
| 1：Packaging | 2：Length | 3：Connector | 4：Color | 5：Wire Diameter |
