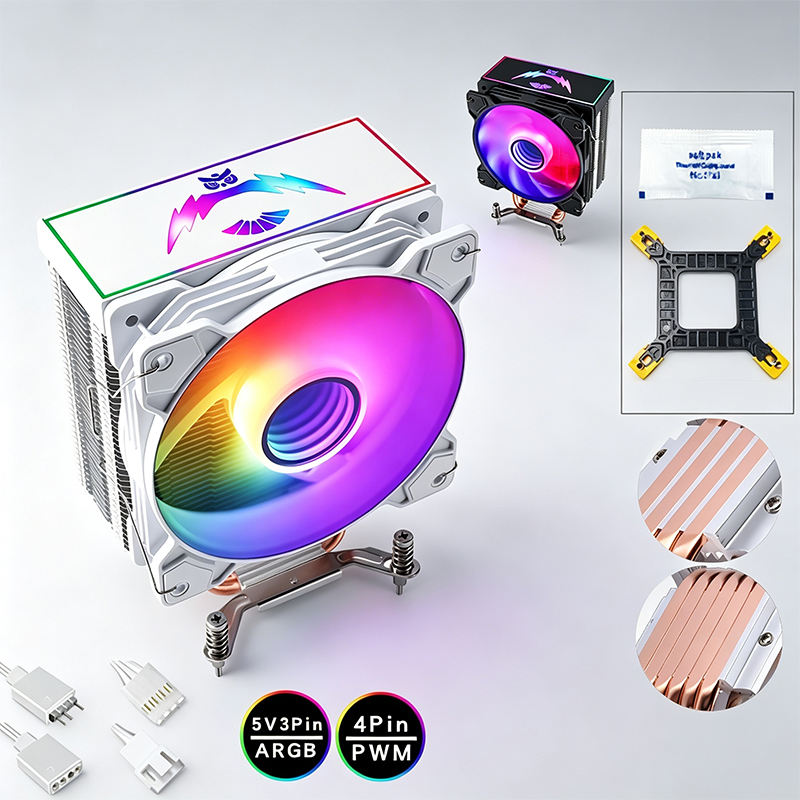

QiuzAim ARGB Desktop I5 I7 CPU Tower Heat Sink 4/6 Heat Pipe 120mm High Air Volume PWM Fan Air-cooled Cooler LGA1700 1150 1366

5 0 Reviews
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
sharethis sharing button
Specification
item
value
Compatible Platforms
LGA775-1150-1151-1155-1156-1200-1356-1366-1700
AMD:Not supported（Please contact customer service if needed）
Brand Name
QiuzAim
Application
CPU
TDP
160W(4Heatpipe)/180W(6Heatpipe)
Heatpipe
4/6
Fan
1
Power
3W
Power Interface
5V3Pin ARGB + 4pin PWM
LED Color
ARGB
Heatsink Material
Copper Heatpipe & Aluminum
Fan Size
120x120x25mm
Fan Speed 4pin PWM
600-1600±10%RPM
Fan Life
50000 Hrs
Air Volume
45-55CFM
Model Number
QZ-1243A-PMG-MY2D-1FA、QZ-1263A-PMG-MY2D-1FA
OEM/ODM
Supports Customization
Package
Color Box(CPU cooler*1, fixing backplate*1 kit, thermal paste*1)
Customization Options
1,Heatsink Color
2,Logo
3,Fan Speed
4,Top Cover Design
5,Connector
6,Packaging Box
1,Heatsink Color
2,Logo
3,Fan Speed
4,Top Cover Style/Pattern/Material
5,Connector
6,Package Style/Pattern/Material
Packing & Delivery

You can choose the packaging

We have A-B-C-D 4 different options for product packaging boxes. Box A is printed with the "QiuzAim" brand name and logo. B-C-D is a neutral box without brand or logo.
If you have no choice, we will send the A "QiuzAim" brand packaging box by default.
If you want to customize your own packaging box, please contact us.
Package:Color Box(CPU cooler*1, thermal paste*1)
Packing list：①②③
①Heatpipe radiator + Fan
②Mounting backplate +thermal paste
③Color box
Product Description
Product applicable platform
LGA multi-platform universal：
LGA 775/1150/1151/1155/1156/1200/1356/1366/1700
Celer series/Pen series/ Cor Dual/i3-i5-i7-i9 12th-15th Gen
(If you need to use for the Xeon lga 2011 series, please contact customer service)
A-M-D：Not supported（Please contact customer service if needed）
Applicable motherboard reference

1：Suitable for Intel mounting backplate,
Adjustable for 775-1150-1151-1155-1156-1200-1356-1366-1700 sockets.
2：Applicable motherboard reference.

3：Install the backplate into the
corresponding sockets positions from the back of the motherboard.
4：Adjust the CPU cooler sockets to match the motherboard and tighten the screws.
Introduction to sockets
①②：5V 3Pin ARGB
①：5V 3Pin series connection to achieve lighting synchronization
②：5V 3Pin motherboard synchronization, the motherboard needs to support ARGB function
③④：4Pin PWM
③：Fan PWM is connected in series to achieve temperature control synchronization
④：Mainboard PWM, temperature control.
Company Profile

Guangzhou Qiuzhi Import And Export Co., Ltd.
广州求志进出口有限公司

We adhere to the customer-centered business philosophy and have a strong production team, R&D team, quality control department and advanced production equipment. We focus on the research and development, design, manufacturing and wholesale of PC ecological products, especially our brand "QiuzAim"（求志） computer cooling System products,
including CPU radiators LED fans and lighting control system products, are sold online and offline to more than 100 countries and regions around the world. At the same time, we support OEM/ODM production and processing. We welcome new and old customers to visit our company for guidance and business negotiation.
Each certificate is a recognition of our products and a reward for our responsibility to our customers.
▲Computer wire production workshop
▼Computer cooling product production workshop
▲Motor production and testing
▲Lamp strip and lamp bead manufacturing and testing
▲Light panel welding wire, press-fit motor, central axis lens applying, side lens applying
▲Finished product assembly, finished product testing, appearance inspection, finished product packaging
▲Radiator manufacturing, radiator polishing, semi-finished radiator, finished product assembly
▼Finished product testing, finished product packaging
▲A corner of warehousing
▼A corner of warehousing
▲Deliver
