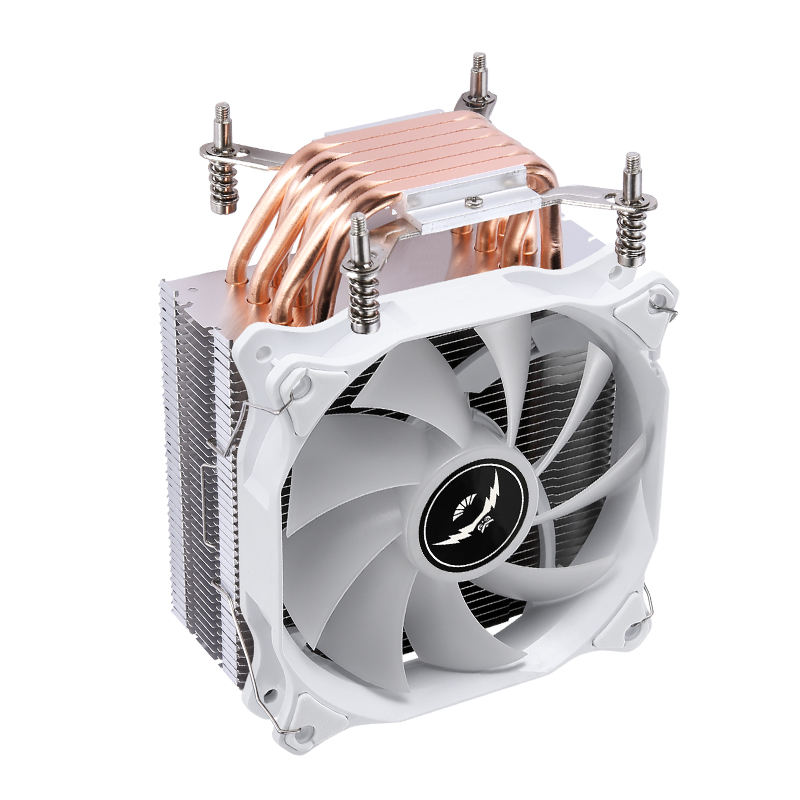

QiuzAim Desktop 2011 Air-cooled 6-copper Tube CPU Heat Sink 120mm Fan 4pin Temperature Control X79 Motherboard X99 Server

QiuzAim Desktop 2011 Air-cooled 6-copper Tube CPU Heat Sink 120mm Fan 4pin Temperature Control X79 Motherboard X99 Server

5 0 Reviews

Quantity:
Availability:





Inquire Add to Basket

Product Description

Specification

item	value
Compatible Platforms	LGA2011 E5 X79 X99
Compatible Platforms		AMD:Not supported（Please contact customer service if needed）
Brand Name	QiuzAim
Application	CPU
TDP	160W(1Fan)/170W(2Fan)
Heatpipe	6
Fan	1/2
Power	3W/5W
Power Interface	3pin/4pin
LED Color	No LED/Fixed Color
Heatsink Material	Copper Heatpipe & Aluminum
Fan Size	120x120x25mm
Fan Speed 3Pin Fixed	1200±10%RPM
Fan Speed 4pin PWM	600-1200±10%RPM
Fan Life	50000 Hrs
Air Volume	45-55CFM
Model Number	QZ-1263-BK-1F、QZ-1263-BK-2F
OEM/ODM	Supports Customization
Package	Color Box(CPU cooler1, fixing bracket1 kit, thermal paste*1)

Customization Options

1,Heatsink Color

2,Logo

3,Fan Speed

4,Top Cover Design

5,Connector

6,Packaging Box

1,Heatsink Color

2,Logo

3,Fan Speed

4,Top Cover Style/Pattern/Material

5,Connector

6,Package Style/Pattern/Material

Packing & Delivery

You can choose the packaging

We have A-B-C-D 4 different options for product packaging boxes. Box A is printed with the "QiuzAim" brand name and logo. B-C-D is a neutral box without brand or logo.

If you have no choice, we will send the A "QiuzAim" brand packaging box by default.
If you want to customize your own packaging box, please contact us.

Package:Color Box(CPU cooler*1, thermal paste*1)

Packing list：①②③

①Heatpipe radiator + Fan

②thermal paste

③Color box

Product Description

Product applicable platform
LGA multi-platform universal：
LGA 2011 E5 X79 X99 (Suitable For Square-hole Pitch Threaded Base)
A-M-D：Not supported（Please contact customer service if needed）

Applicable motherboard reference

1:Square-hole Pitch Threaded Base Single Socket Motherboard E5 X79 X99 2011

2:This dual-socket motherboard is not supported. If necessary, please contact customer service.

Introduction to power pins

3-wire and 4-wire connectors are universally compatible;

installation is worry-free regardless of the interface type.

3Pin:Fixed Speed

The 3-pin fan has a fixed speed, high air volume, good heat dissipation, but there may be slight wind noise

4Pin:PWM( Temperature control)

The 4Pin fan will intelligently adjust the fan speed based on the current CPU temperature, which can save energy, mute sound, and extend lifespan! (The motherboard needs to support and enable PWM speed regulation function, which is basically available on all
motherboards)
