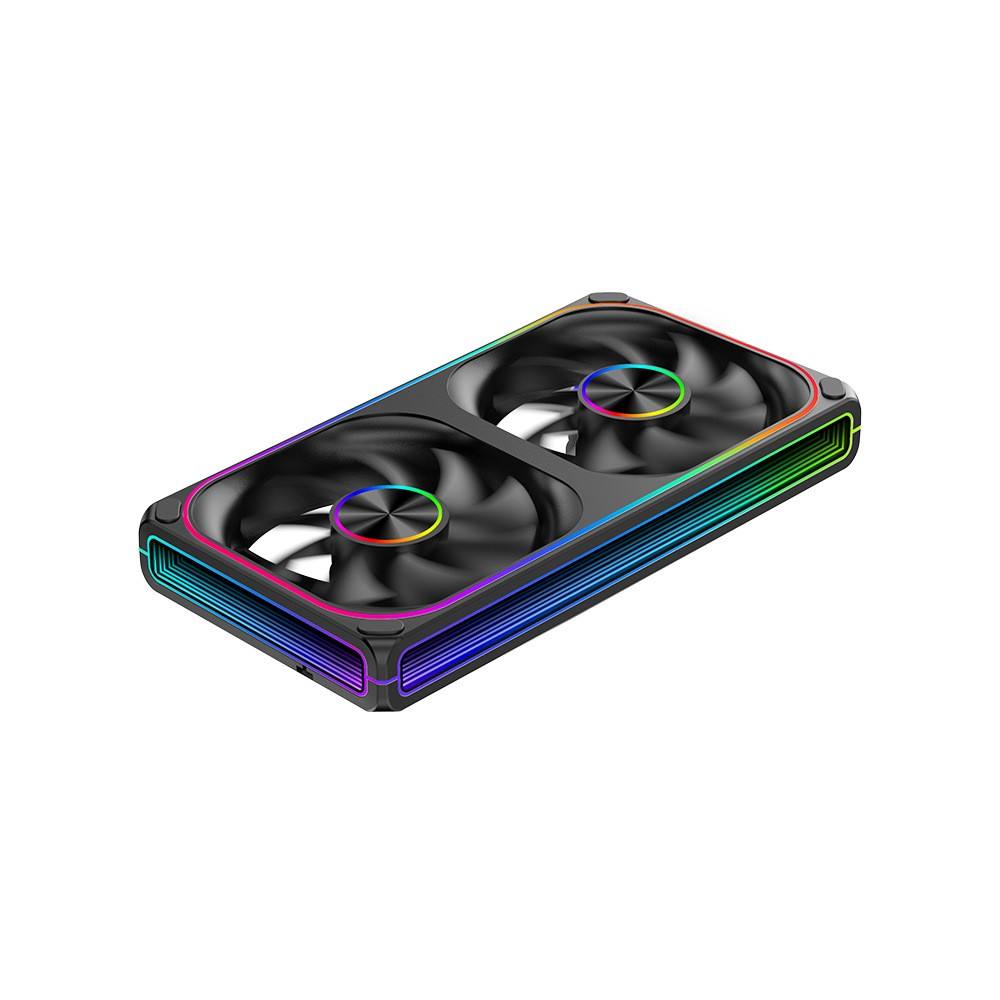

QiuzAim Factory 360mm One-piece Frame ARGB Infinity Mirror Cooling Fan Gaming Computer Radiator Forward&Reverse Blade Available

5 0 Reviews
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
sharethis sharing button
Specification
item
value
Brand Name
QiuzAim
Application
Computer Case
LED Color
ARGB
Product Name
ARGB Case Fan
Model Number
FA-V360
Type
Fan
Fan Material
ABS
Fan Size
360x120x28mm(V360)/120x120x25mm(V12)
Fan Speed(PWM)
800-1800 RPM±10%(V360)/650-1600 RPM±10%(V12)
Power
7.32W(Fan)/6.75W(LED)
Power Interface
5v 3pin ARGB/4pin
Full Box
20 pcs(V360)/100pcs(V12)
Full Box Weight
13.5kg(V360)/20kg(V12)
Full Box Size
43*37*31cm(V360)/47*43*38cm(V12)
Shipping Time
2-5 Days
Warranty Period
12 Moths
Package
360/240/120mm Fan*1 + Screws
OEM/ODM
Supports Customization
You can customize the fan you want
Customization Options
1:Packaging
2:LOGO
3:Speed
4:Lighting
5:Blade
6: Connector
1:Custom Packaging/Pattern
2:Custom LOGO
3:Custom Speed
4:Custom Lighting/Style/Size
5:Custom Blade/Material/Color
6: Custom Connector
We offer you a variety of packaging options
We provide you with 6 types of individual packaging boxes. Of course you can also customize your own box. We support OEM/ODM.
We have also prepared 2-pack, 3-pack, 4-pack, 5-pack, 6-pack, 7-pack, 8-pack, 9-pack and 10-pack packaging options for you.
Packing & Delivery
Package:Color Box(Fan*1 + Screws)
Packing List:1-2
1:360mm/240mm/120mm Fan*1
2:Screws
Product Description
Introduction to sockets
①②：5V 3Pin ARGB
①：5V 3Pin series connection to achieve lighting synchronization
②：5V 3Pin motherboard synchronization, the motherboard needs to support ARGB function
③④：4Pin Fan Header
③：Fan is connected in series
④： Connected in Motherboard 4Pin Fan Header
Fan and Controller Connection Diagram
①：Connect the SATA socket of the controller to the SATA socket of the PSU power supply. ②：Connect the 5V3Pin+4Pin PWM socket of the ARGB fan to the 5V3Pin+4Pin PWM socket of the controller.

③：Controller 5V 3Pin+4Pin PWM socket.

Introduction to ARGB Controller Connection

1 represents the desktop host restart key (optional or not required)
2 represents SATA power supply line
3 represents a universal 5v 3-pin interface
4 represents VDG motherboard synchronization line
5 represents the red PWM interface
6 represents the first PWM interface inserted into the CPU heat sink (red)
7 represents temperature controlled ARGB fan 1- fan 3
8 represents temperature controlled ARGB fan
9 represents the temperature control signal cable connected to the motherboard CPU Fan
10 represents temperature controlled ARGB fan 4- fan 7
11 represents the supported motherboard Shenguang(AURA) synchronization interface types

Pay attention to the warning!!! Insert the cable again after disconnecting the power supply, and do not plug it into any wrong interface to avoid causing a short circuit and burning the equipment!
Introduction to Remote Control Functions
1 represents power on/motherboard switching
2 represents mode+
3 represents fan speed+
4 represents fan speed-
5 represents static color key
6 represents continuous pressing for 10 times to pass the code/code matching, fast flashing for 3 times to pass the code and slow
flashing for 3 times
7 represents continuous pressing for 10 times to enter RGB sequence adjustment. Press the red key until it appears red, then press
the green key until it appears green, and then press the off key to save8 represents static brightness-
9 represents mode-
10 represents static brightness+
11 represents off
12 represents automatic mode cycle
Fan inlet/outlet schematic diagram
• Airflow Direction:
• Standard Blade Fan:Air is drawn in from the front and expelled out the back,which is referred to as"front intake,rear exhaust."
• Reverse Blade Fan:Air is drawn in from the back and expelled out the front,which is referred to as"rear intake,front exhaust."
