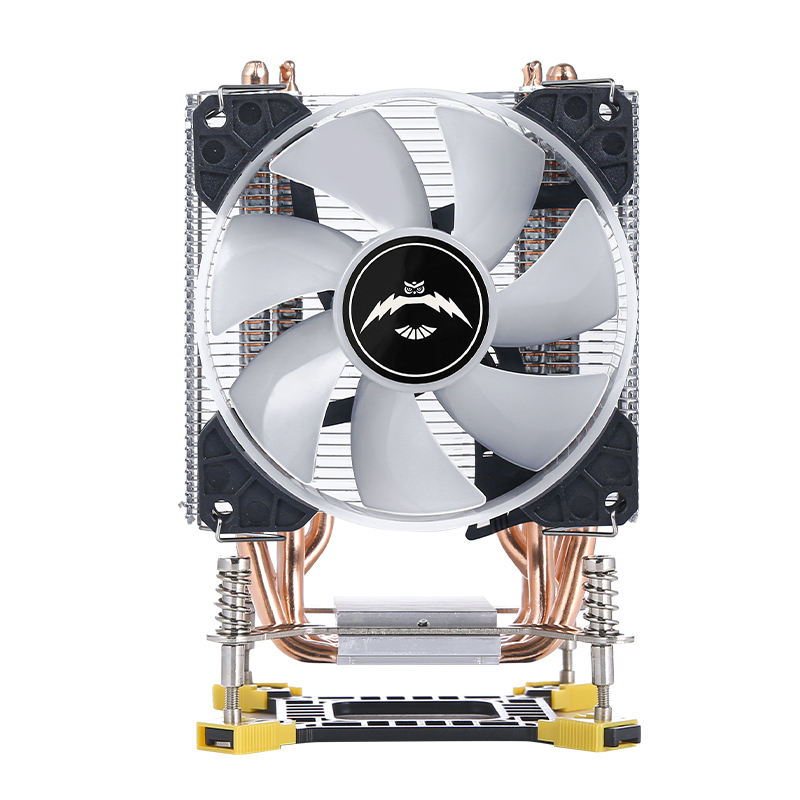

QiuzAim LGA1151 Gaming 6 Copper Pipes Desktop 90*90*25mm CPU Air Cooling Cooler Quiet RGB Fans 1700 1155 1150 1156 1366 1200

QiuzAim LGA1151 Gaming 6 Copper Pipes Desktop 909025mm CPU Air Cooling Cooler Quiet RGB Fans 1700 1155 1150 1156 1366 1200

5 0 Reviews

Quantity:
Availability:





Inquire Add to Basket

Product Description

Specification

item	value
Compatible Platforms	LGA775-1150-1151-1155-1156-1200-1356-1366-1700
Compatible Platforms		AMD:Not supported（Please contact customer service if needed）
Brand Name	QiuzAim
Application	CPU
TDP	150W(1Fan)/160W(2Fan)
Heatpipe	6
Fan	1/2
Power	3W/5W
Power Interface	3pin/4pin
LED Color	Fixed Color
Heatsink Material	Copper Heatpipe & Aluminum
Fan Size	90x90x25mm
Fan Speed 3Pin Fixed	1800±10%RPM
Fan Speed 4pin PWM	800-1800±10%RPM
Fan Life	50000 Hrs
Air Volume	38-58CFM
Model Number	QZ-930A-YH-1F、QZ-930A-YH-2F
OEM/ODM	Supports Customization
Package	Color Box(CPU cooler1, fixing backplate1 kit, thermal paste*1)

Customization Options

1,Heatsink Color

2,Logo

3,Fan Speed

4,Top Cover Design

5,Connector

6,Packaging Box

1,Heatsink Color

2,Logo

3,Fan Speed

4,Top Cover Style/Pattern/Material

5,Connector

6,Package Style/Pattern/Material

Packing & Delivery

You can choose the packaging

We have A-B-C-D 4 different options for product packaging boxes. Box A is printed with the "QiuzAim" brand name and logo. B-C-D is a neutral box without brand or logo.

If you have no choice, we will send the A "QiuzAim" brand packaging box by default.
If you want to customize your own packaging box, please contact us.

Package:Color Box(CPU cooler*1, thermal paste*1)

Packing list：①②③

①Heatpipe radiator + Fan

②Mounting backplate +thermal paste

③Color box

Product Description

Product applicable platform
LGA multi-platform universal：
LGA 775/1150/1151/1155/1156/1200/1356/1366/1700 Celer series/Pen series/ Cor Dual/i3-i5-i7-i9 12th-15th Gen (If you need to use for the Xeon lga 2011 series, please contact customer service)
A-M-D：Not supported（Please contact customer service if needed）

Applicable motherboard reference

1：Suitable for Intel mounting backplate,

Adjustable for 775-1150-1151-1155-1156-1200-1356-1366-1700 sockets.
2：Applicable motherboard reference.

3：Install the backplate into the
corresponding sockets positions from the back of the motherboard.
4：Adjust the CPU cooler sockets to match the motherboard and tighten the screws.

Introduction to power pins

3-wire and 4-wire connectors are universally compatible;

installation is worry-free regardless of the interface type.

3Pin:Fixed Speed

The 3-pin fan has a fixed speed, high air volume, good heat dissipation, but there may be slight wind noise

4Pin:PWM( Temperature control)

The 4Pin fan will intelligently adjust the fan speed based on the current CPU temperature, which can save energy, mute sound, and extend lifespan! (The motherboard needs to support and enable PWM speed regulation function, which is basically available on all
motherboards)
