QiuzAim Universal 5V3Pin 9 Ports ARGB Fan Hub Led Light Controller with 4Pin PWM Sata Socket for PC Fans Mainboard Sync.

5 0 Reviews
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
sharethis sharing button
Specification
item
value
Brand Name
QiuzAim
Product Name
ARGB Controller
Number of interfaces

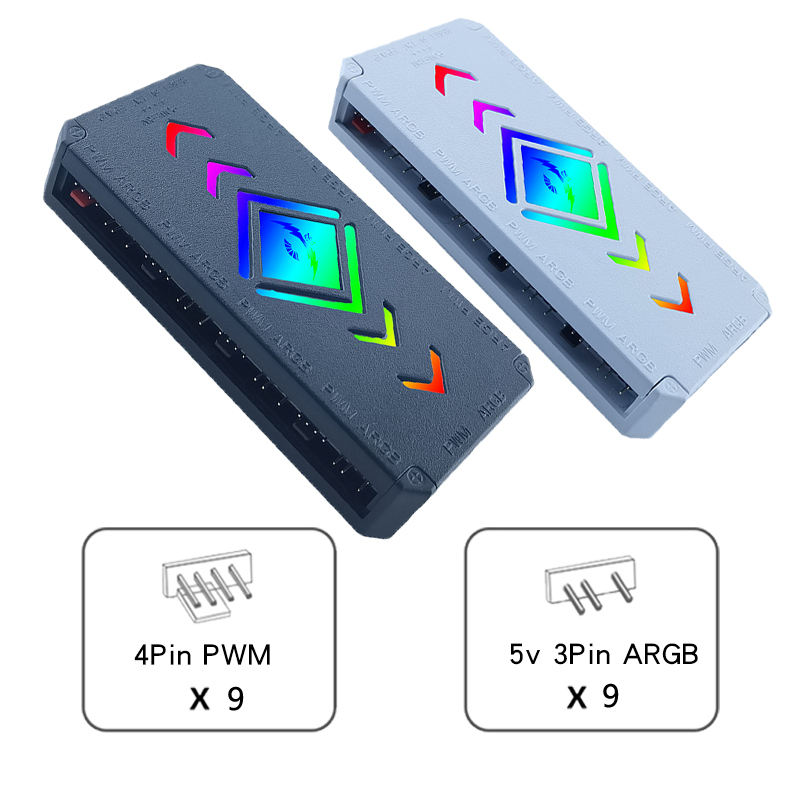

9 ports 5V 3-pin ARGB + 9 ports 4-pin PWM
Power interface
SATA
Rated voltage
5V 12V DC
Rated current
>10A
Line length
30cm±5%
Size
118×55×17mm
Package
Controller*1/Remote Control*1/Power Cable*1/Sync Cable*1
OEM/ODM
Supports Customization
Packing & Delivery
Package Contents
* Controller*1

* Remote Control*1

* Power Cable*1

* Sync Cable*1
Product Description
Introduction to ARGB Controller Connectio
① Power SATA interface② 5V 3-pin +4pin fan interface
③ ARGB+PWM signal line interface
④ PWM ARGB Fan Interface
⑤ CPU heat sink fan, connect to the first interface (red PWM 4Pin interface)

Pay attention to the warning!!! Insert the cable again after disconnecting the power supply, and do not plug it into any wrong
interface to avoid causing a short circuit and burning the equipment!

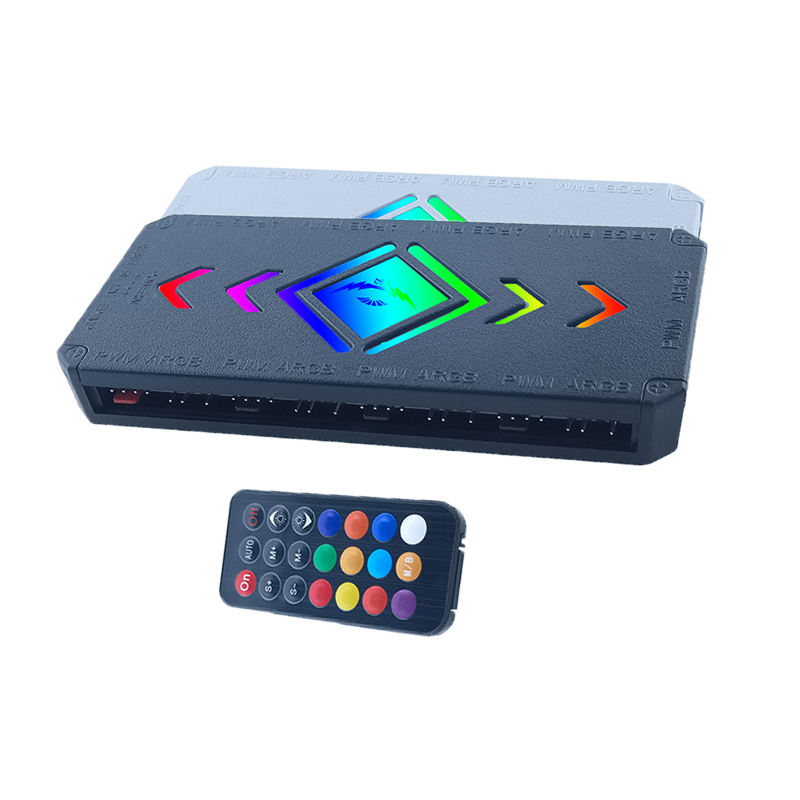

Introduction to Remote Control Functions
1 Automatic cycle/2-3 seconds to restore factory settings
2 Power on/ 2-3 seconds switch back to controller mode
3 Mode+
4 Fan speed+
5 Mode-
6 Fan speed-
7 Static color key
8 Shut down
9 2-3 seconds Switch back to motherboard mode
10 Static brightness+
11 Static brightness-
Interface Introduction
① 5V 3-pin ARGB+ PWM 4Pin interface

② 5V 3-pin synchronous wire

③ PWM 4Pin signal line
Magnetic suction design for convenient installation
The magnetic iron block at the bottom of the controller can firmly adhere to the chassis iron plate, making installation simpler
