| Quantity: | |
|---|---|
| 100 pieces per pack，Please consult us for actual packaging size and weight. | value | |

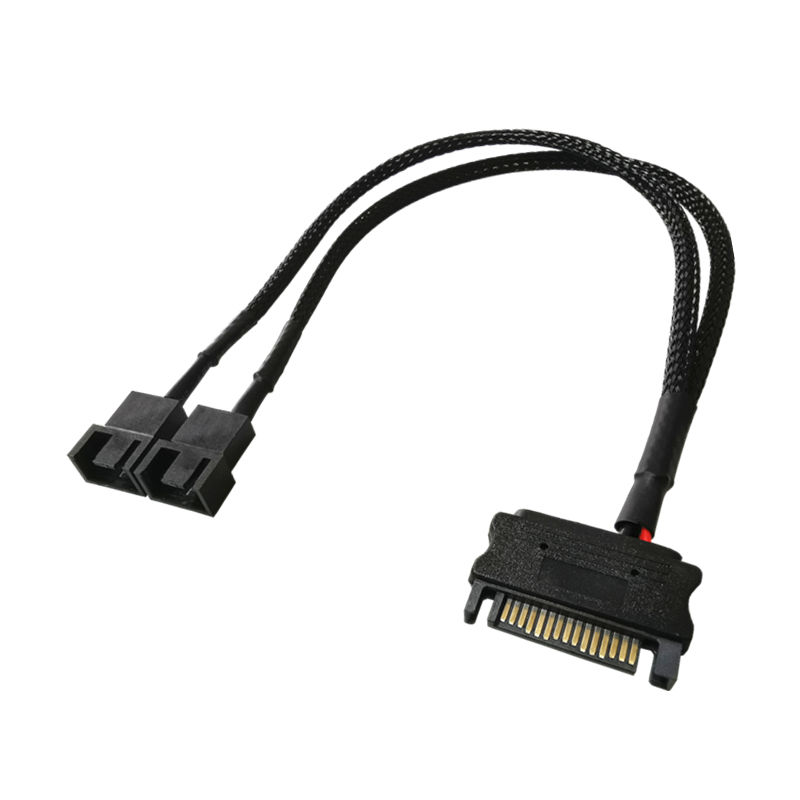

| Product Name | SATA to 4Pin fan divided into two （This interface can be used for 3Pin and 4Pin） | |
| Product Length | full length 30CM | |
| Product customization | If you need other lengths/colors/styles/methods, you can contact customer service for customization | |
| Wire Model | 1007-24AWG | |
| Insulation material | PVC insulation | |
| Conductor specifications | 11/0.12TS | |
| Conductor material | Tinned copper | |
| Outer diameter of wire | OD 1.4mm | |
| Rated temperature | 80℃ | |
| Wire color | black (color can be customized) | |
| Product weight | about 12g | |

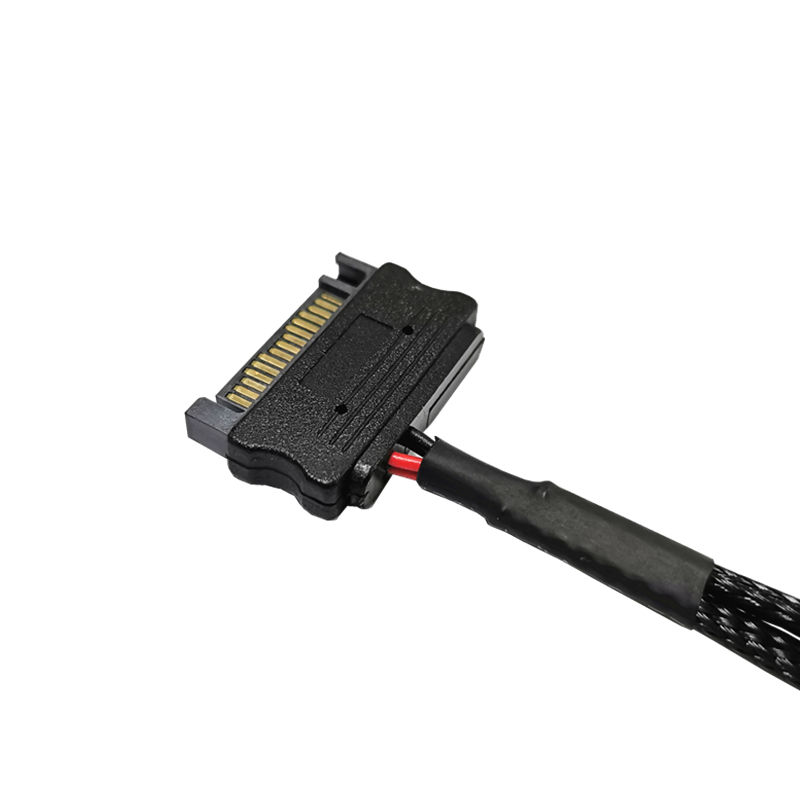

| Product connector | One end is a SATA connector, the other end is a fan 4Pin interface | |
| Purpose: CPU plug (3Pin/4Pin) is not enough, or the motherboard 3Pin/4Pin interface current is not enough, etc. Mainly to extend and expand the motherboard 3Pin/4Pin interface | ||
| This line is a 4Pin interface, and 4 lines can actually be used. Because SATA interfaces are all power supply lines, only two are needed, so only two of them are used. | This line is a 4Pin interface, and 4 lines can actually be used. Because SATA interfaces are all power supply lines, only two are needed, so only two of them are used. | |
| 1：Packaging | 2：Length | 3：Connector | 4：Color | 5：Wire Diameter |
